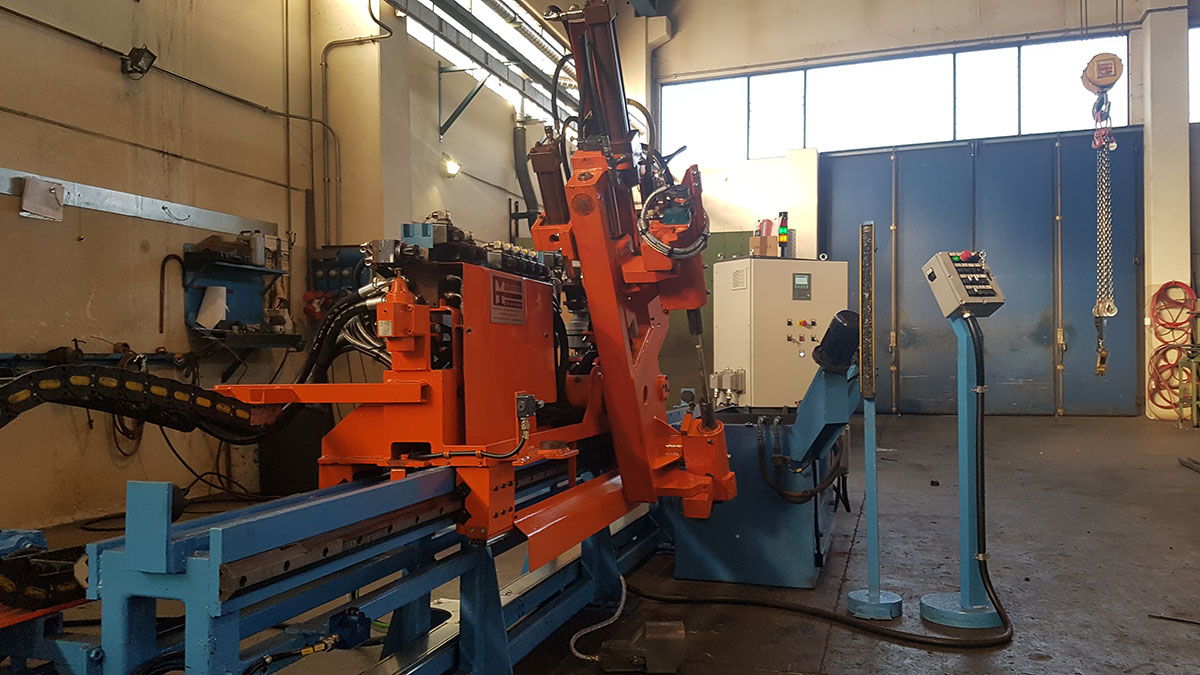

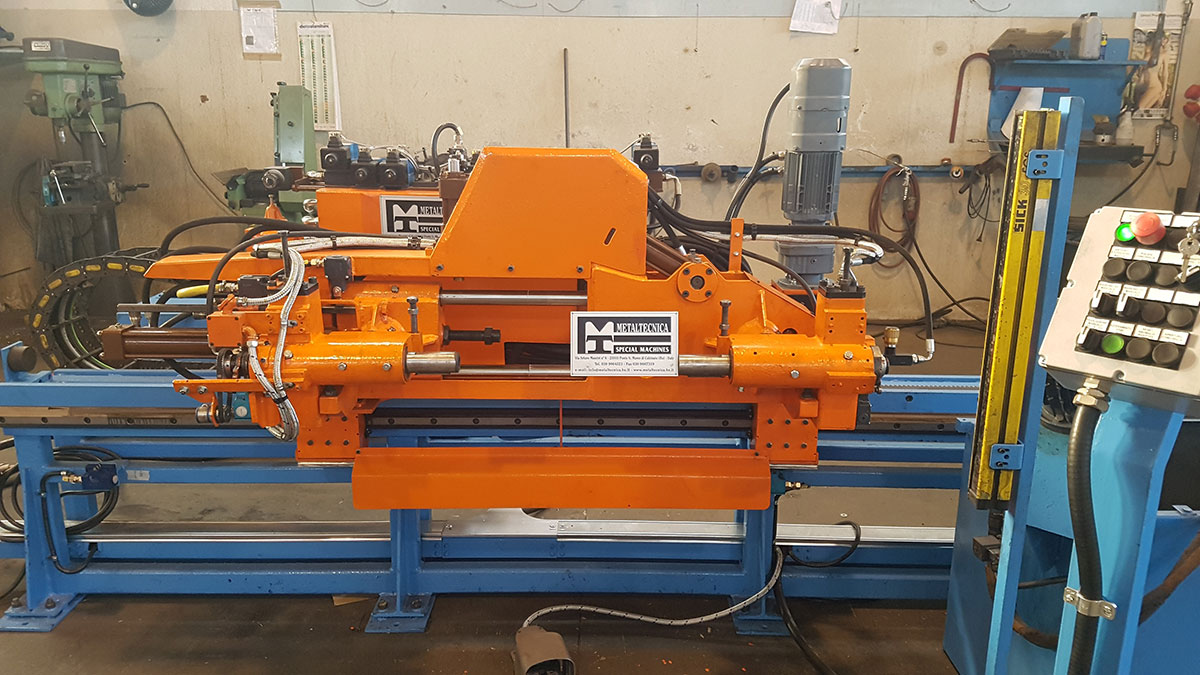

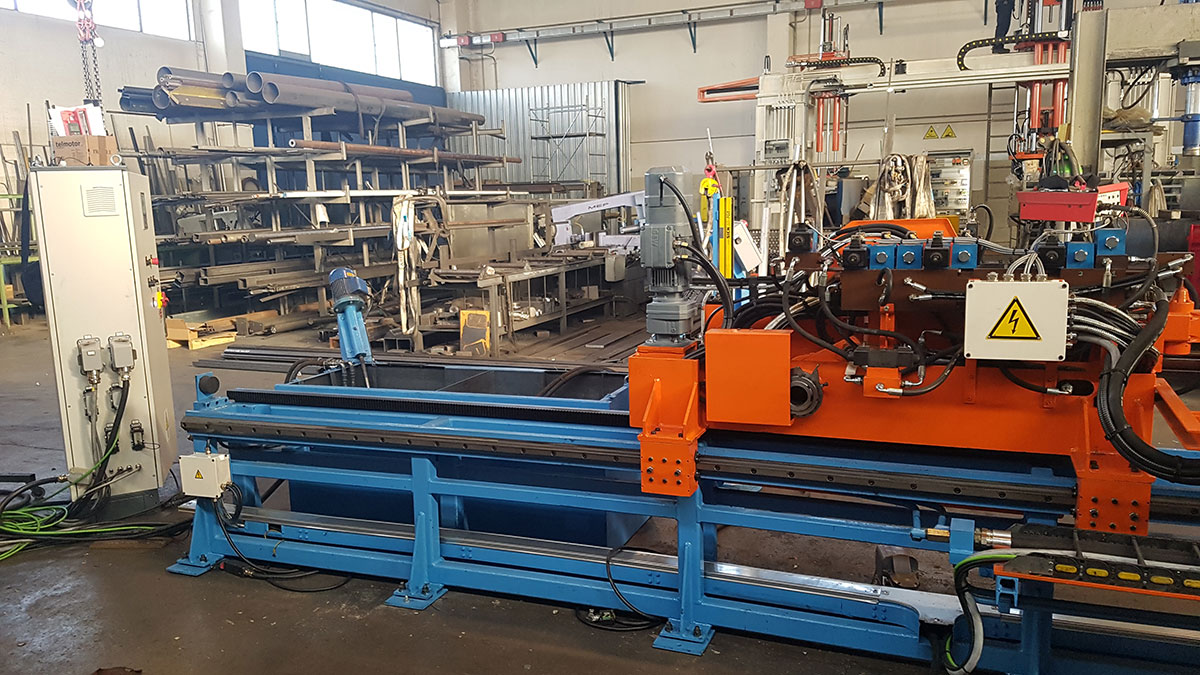

BO-LIN2 casting machine, suitable for the production of gravity casting parts in bronze, specifically bronze bushings.
Composed of: fixed base, mobile horizontal carriage, 1 heads holder group, 1 mobile head, 1 fixed head, mould holder tables with 0-180 ° rotation, heads with 0-90° rotation for mould cooling / graphitising, mould cooling / graphitising complete with mixers, electrical management system, hydraulic unit.
Use in a work cell with interface with casting robots.
Additional information
| Single head capacity | 25 Kg |
|---|---|
| Rotating | D 300 mm |
| Max opening between heads | 500 mm |
| Moving head stroke | 650 mm |
| Extraction stroke | 20 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
