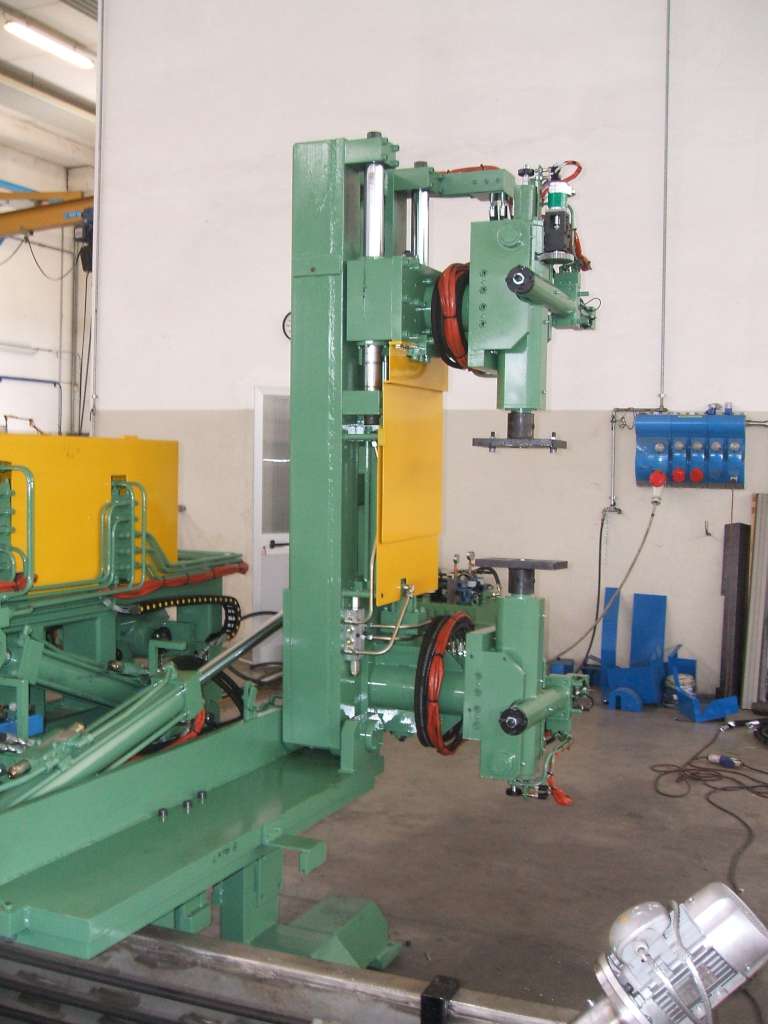

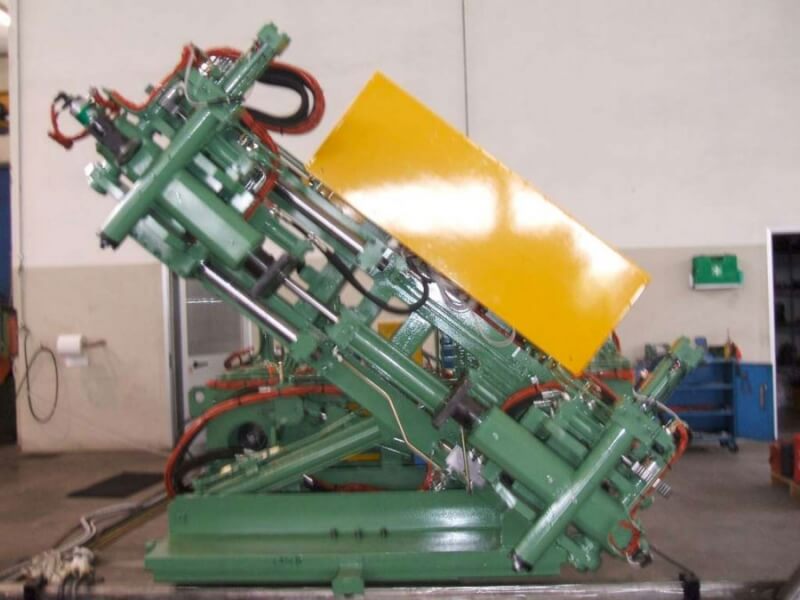

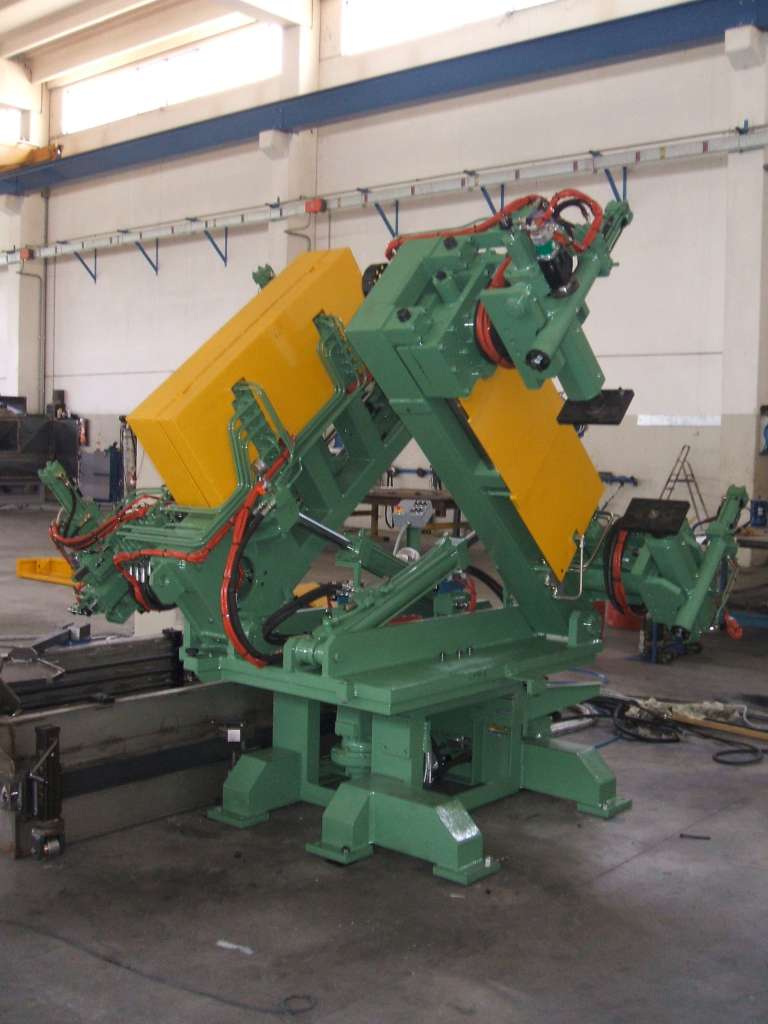

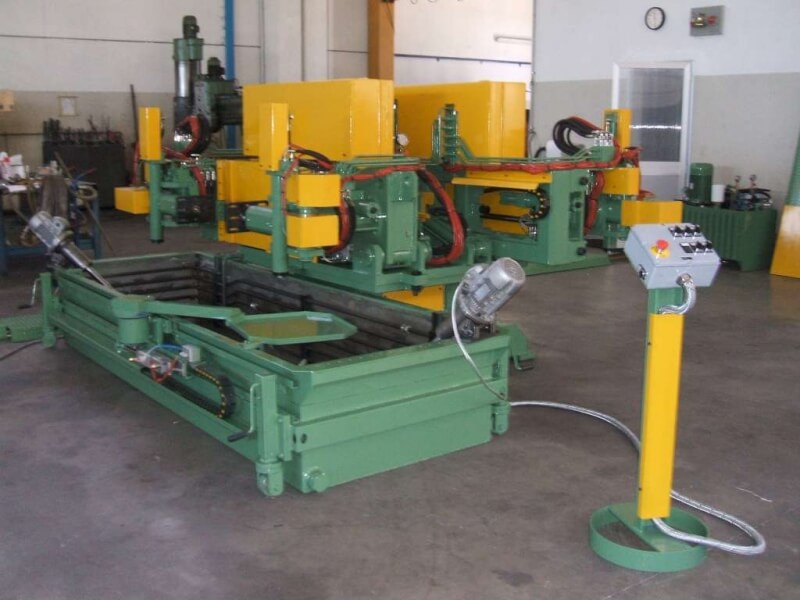

BO-ROTATING 1 brass gravity casting machine, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically brass valves and manifolds, consisting of: fixed base, 0-180 ° rotating table, 2 heads holder groups with 45 ° adjustable inclination mobile head, 1 fixed head, mould holder tables with 0-180 ° rotation with proportional logic, extraction on tables, heads with 0-90° rotation for mould cooling / graphitising, mould cooling / graphitising tank complete with mixers, electrical management system and hydraulic unit.
Use in a work cell with interface with casting robots.
Additional information
| Max opening between heads | 620 mm |
|---|---|
| Rotation | 0-180° |
| Head unit inclination | 0-45° |
| Rotating | D 600 mm |
| Single head capacity | 75 Kg |
| Moving head stroke | 220 mm |
| Extraction stroke | 20 mm |
| Tables dimensions | customizable |
| Tables connections | customizable |
| Tables stroke | customizable |
