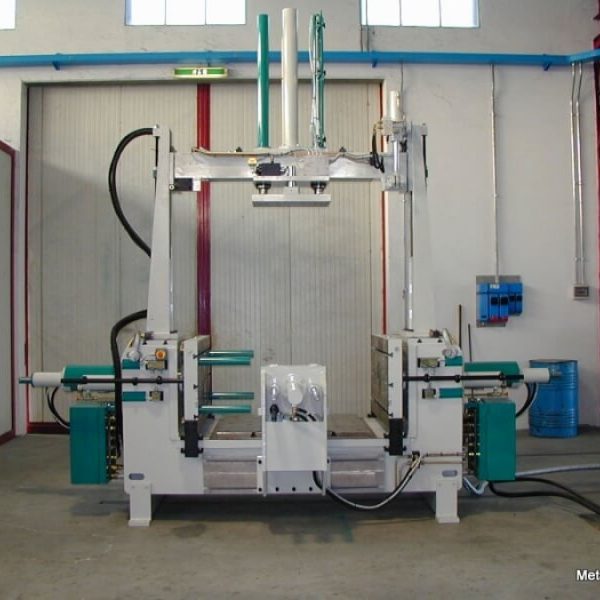

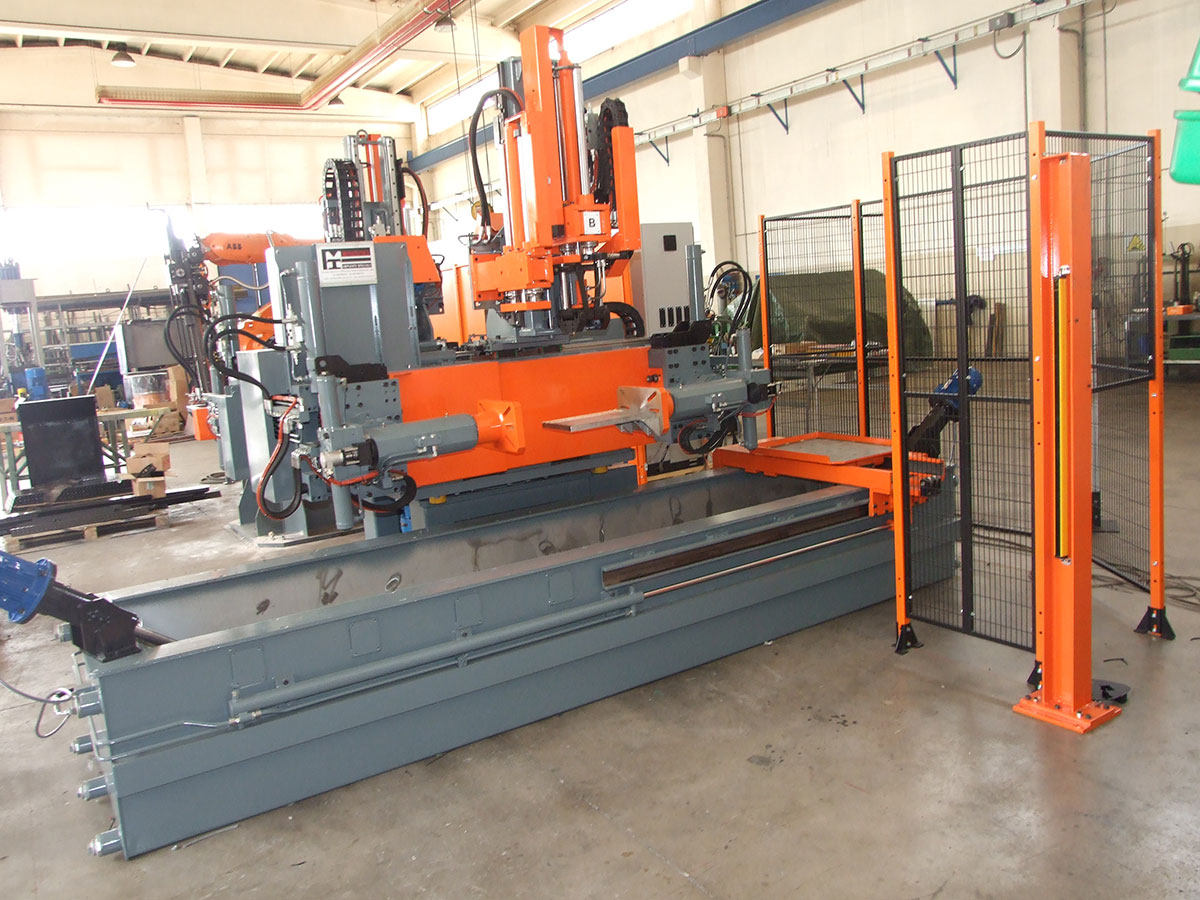

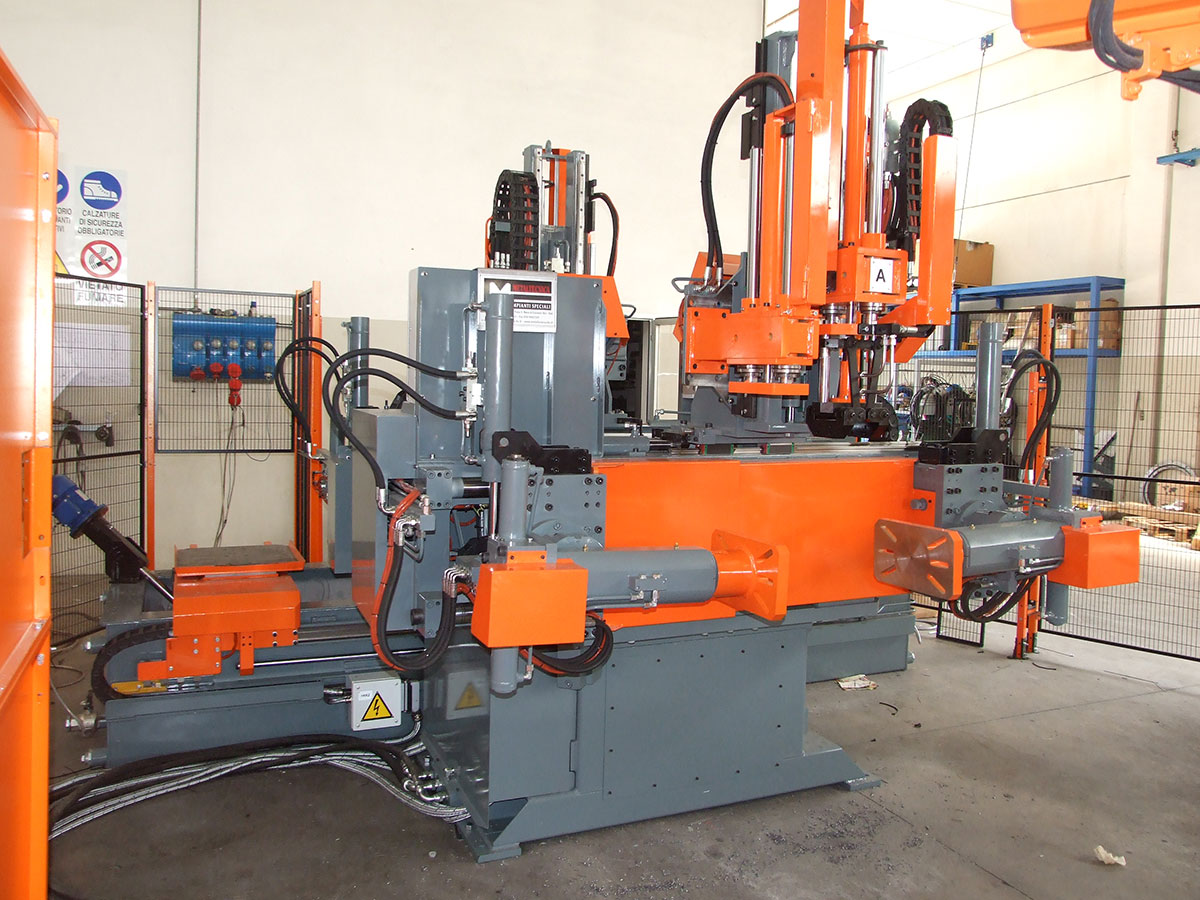

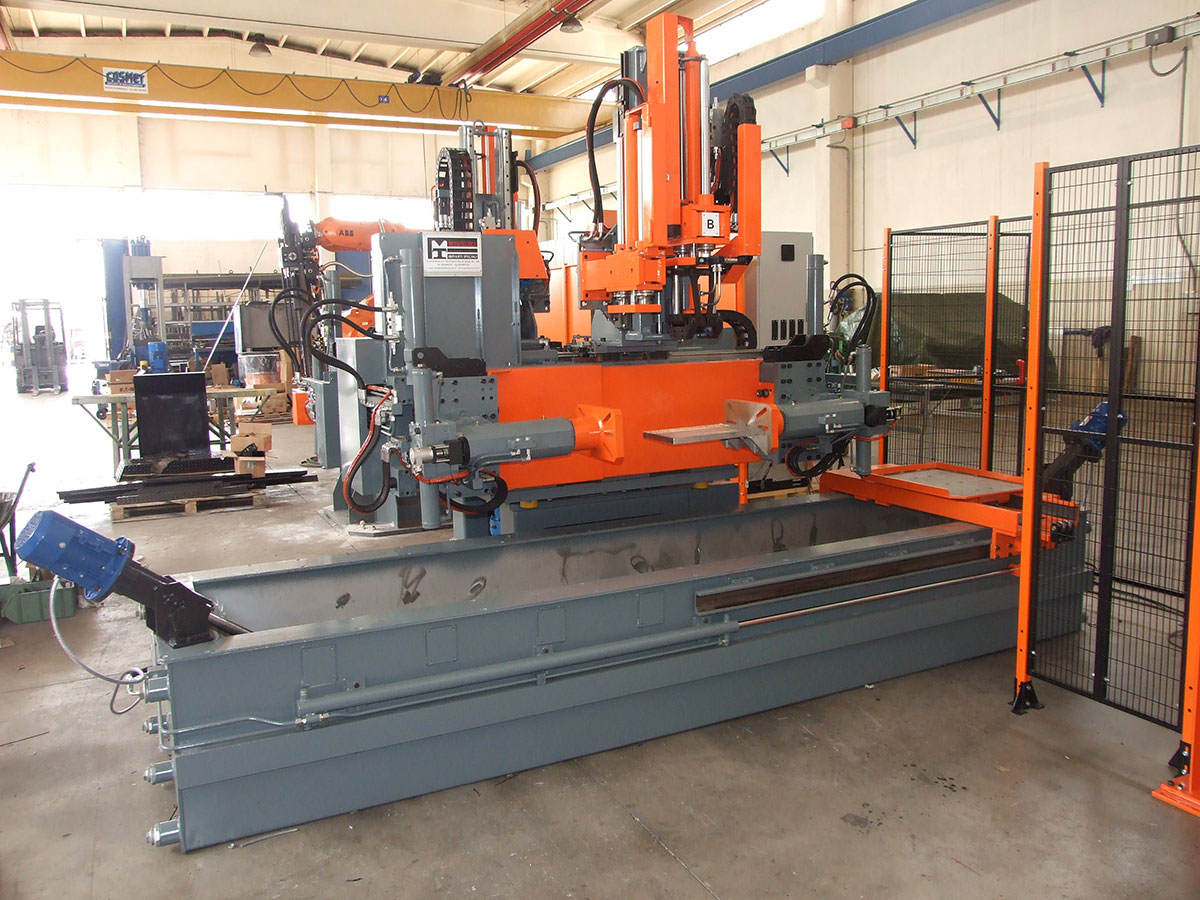

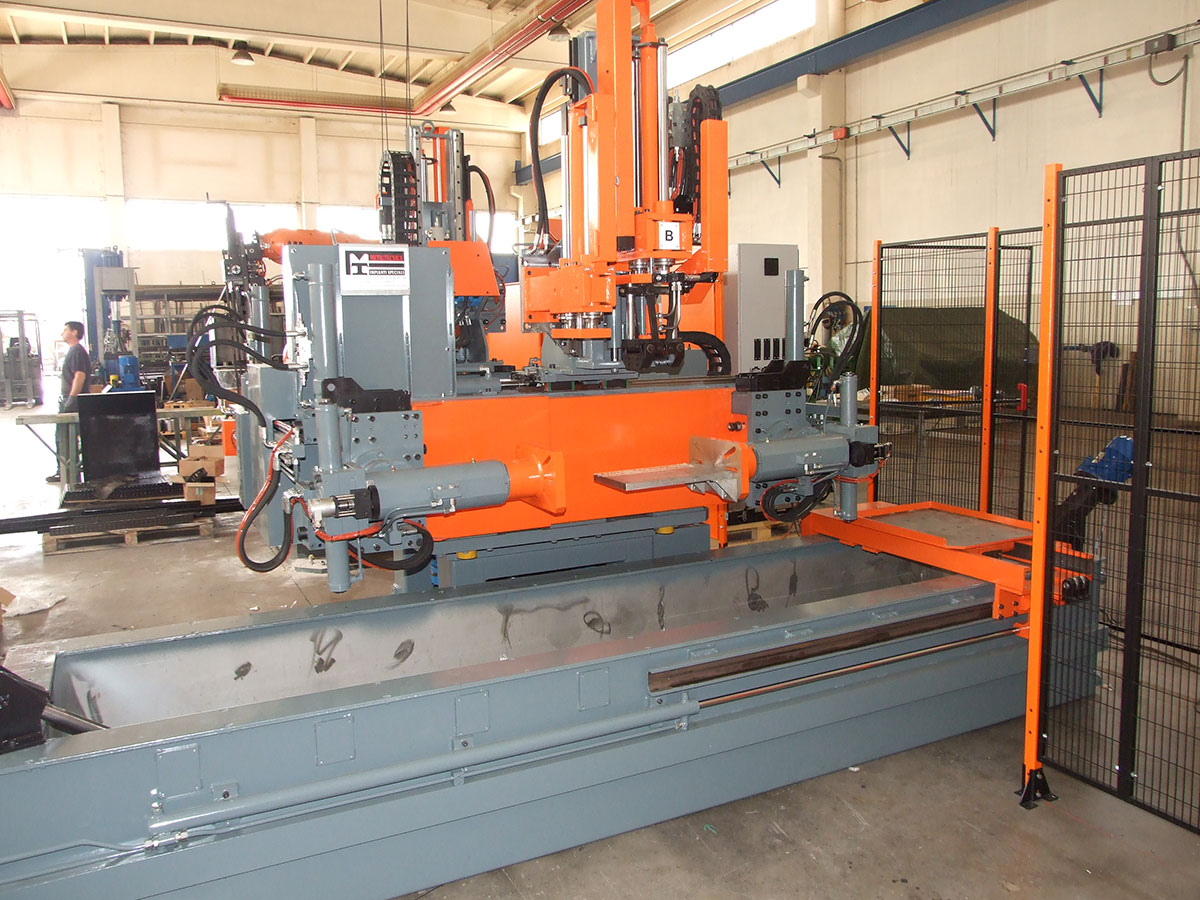

BO-ROTATING 2 bronze casting machine, suitable for the production of gravity casting parts of non-ferrous alloys, specifically bronze crowns for gearboxes.
Composed of: fixed base, 0-180 ° rotating table, 2 heads holder groups, 1 movable head, 1 fixed head, mould holder tables with 0-180 ° rotation with proportional logic, heads with 0-90° rotation for cooling / graphitising mould, mould cooling / graphitising tank complete with mixers and piece evacuation carriage, horizontal and vertical upper male insertion carriage, electrical management system, hydraulic control unit.

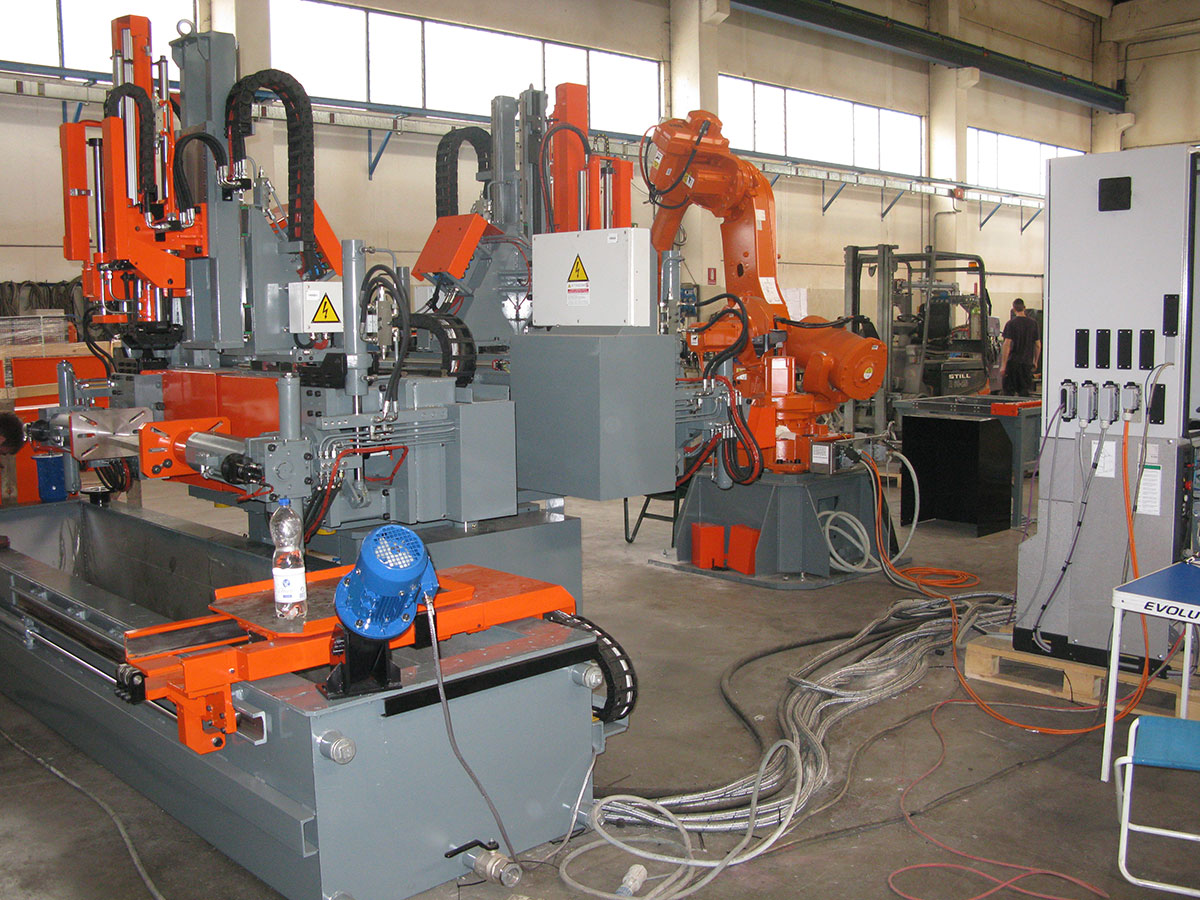

Use in a work cell with interface with casting robots.
Additional information
| Rotation | 0-180° |
|---|---|
| Single head capacity | 120 Kg |
| Rotating | D 700 mm |
| Max opening between heads | 700 mm |
| Moving head stroke | 400 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
