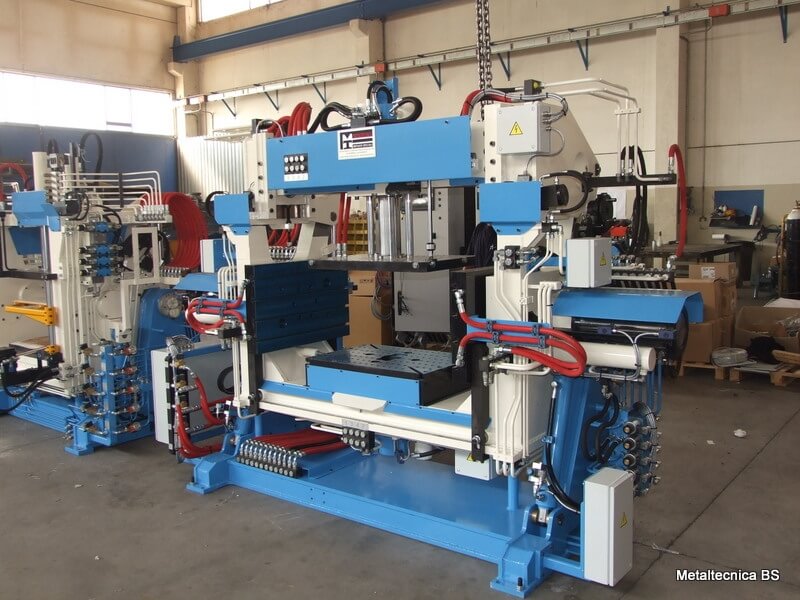

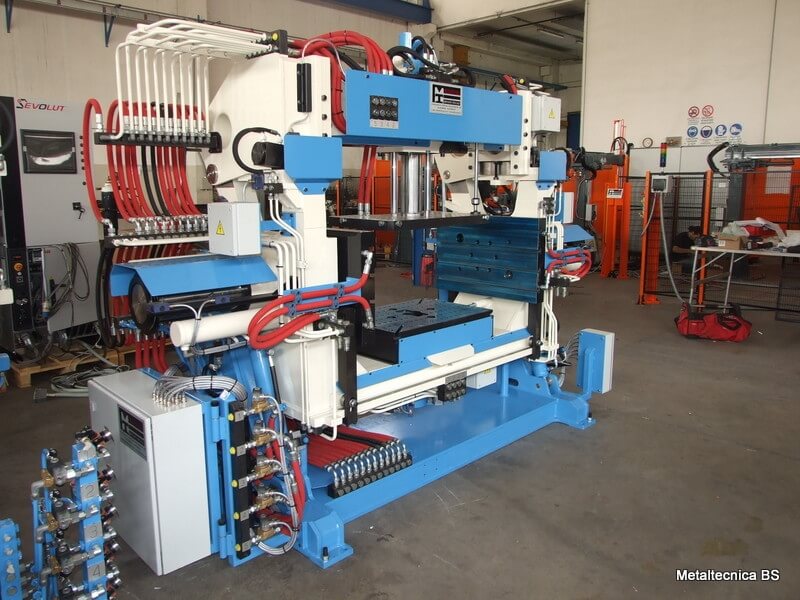

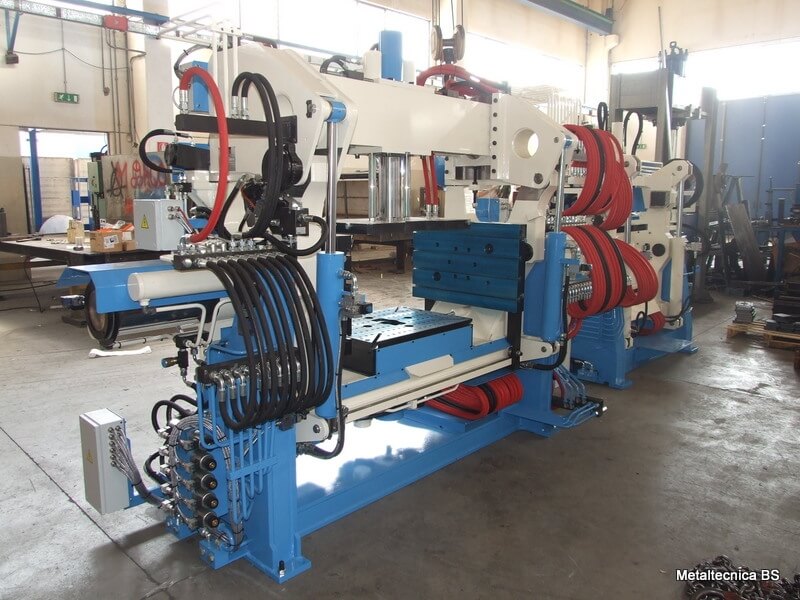

Gravity die casting machine model H 1300 PR, suitable for the production of automotive parts in gravity casting of non-ferrous alloys, specifically Brake calipers, composed of: fixed base, mobile deck with 65 ° inclination with proportional logic, 2 horizontal moving tables, lower ejection, upper crosshead with 120 ° opening, 0 ° closing upper deck with safety latches, upper ejection, piping on board for management of 5 mould cooling.
Additional information
Tilt | 0-65° |
---|---|
Upper deck opening | 120° |
Max opening horiz. | 1300 mm |
Max opening vert. | 750 mm |
Side tables stroke | 400 mm |
Upper table stroke | 300 mm |
Upper ejection stroke | 50 mm |
Lower ejection stroke | 50 mm |
Tables connections | customizable |
Tables dimensions | customizable |
Tables stroke | customizable |
