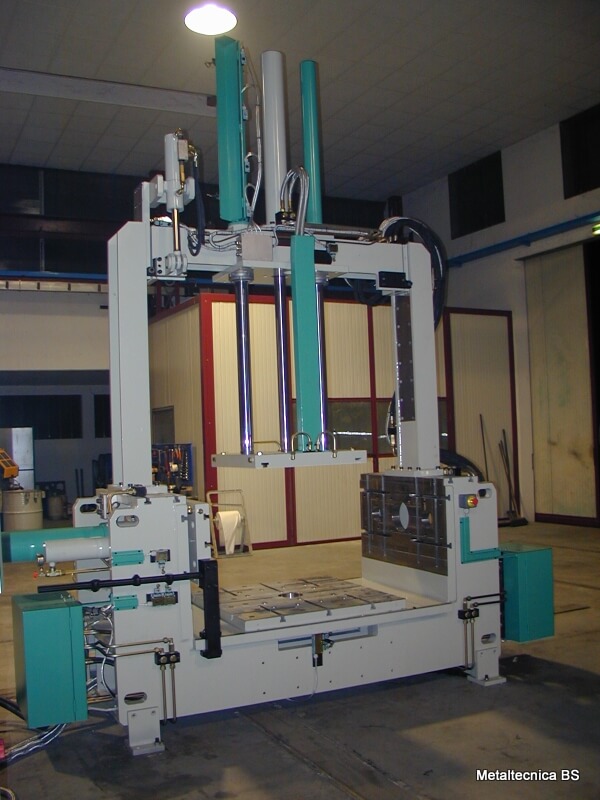

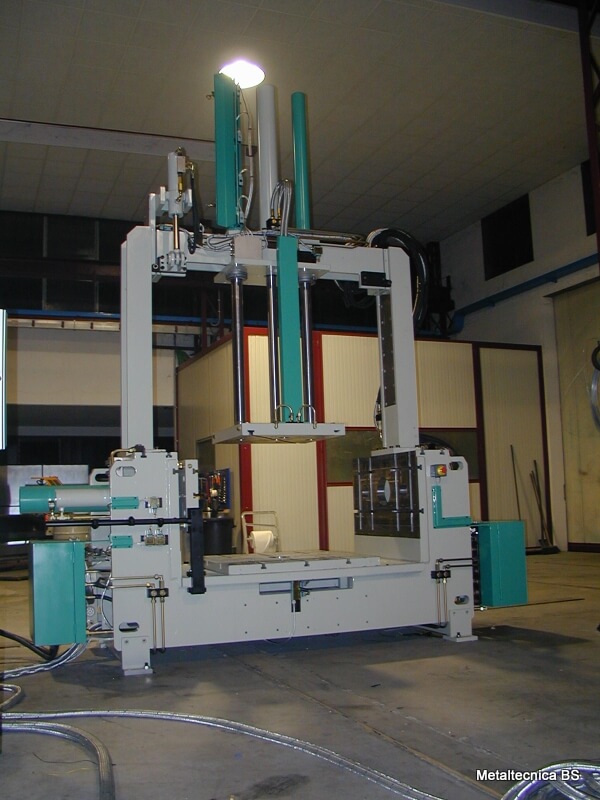

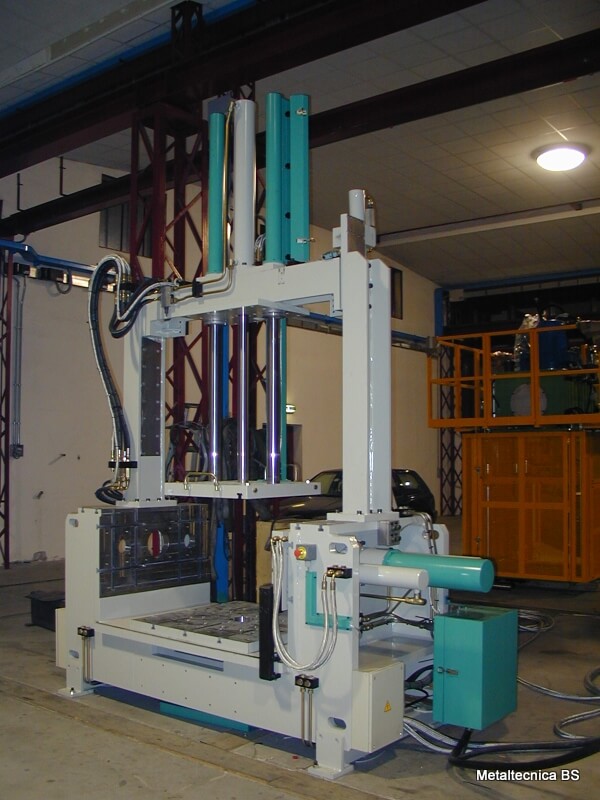

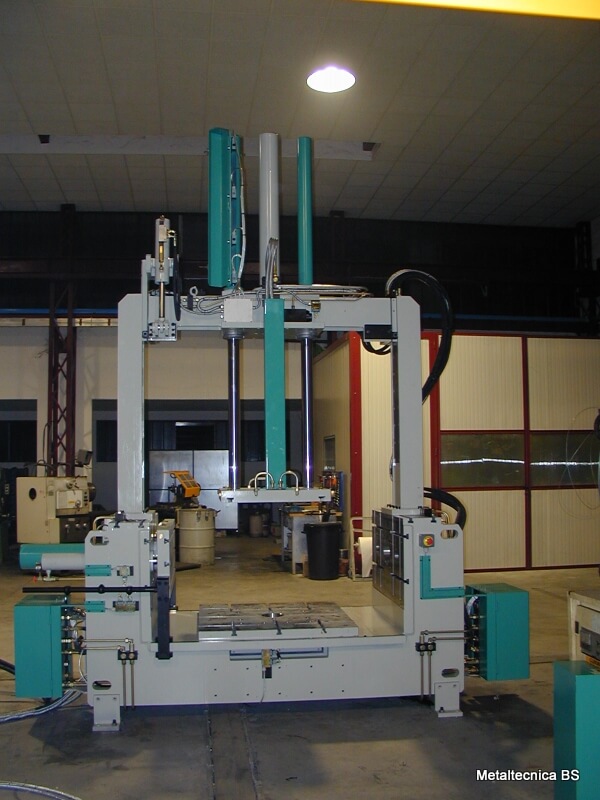

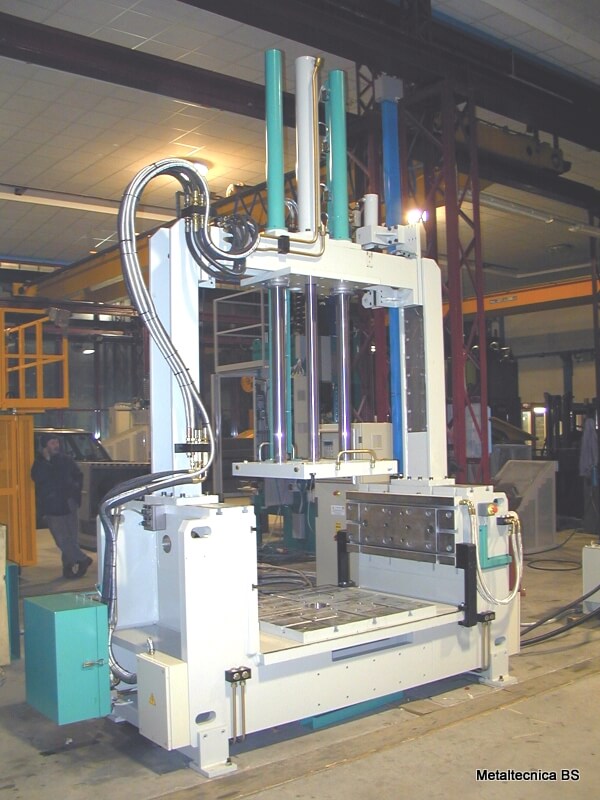

Universal gravity die casting machine model HF 1400, suitable for the production of parts in gravity casting of aluminium, specifically automotive parts, consisting of: fixed base, 1 horizontal mobile shelves, lower extraction, upper deck with 45 ° release movement and adjustable in height, 1 side shelf, electrical management system, hydraulic unit.
Like any machine for the aluminium gravity foundry produced by Metaltecnica, it includes: possibility of use in manual casting and possibility of use in a work cell with interfaced with casting robots.
Additional information
| Max opening horiz. | 1400 mm |
|---|---|
| Max opening vert. | 1600 mm |
| Side tables stroke | 450 mm |
| Upper table stroke | 1000 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
