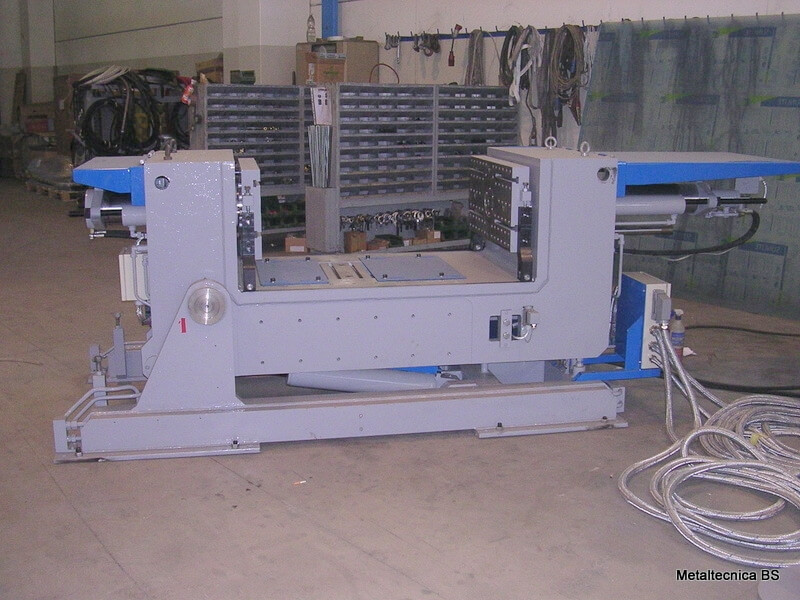

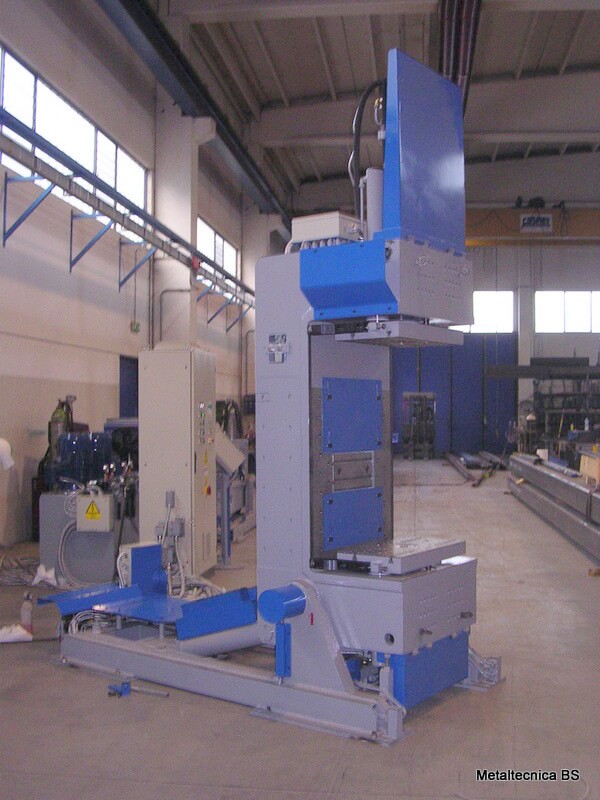

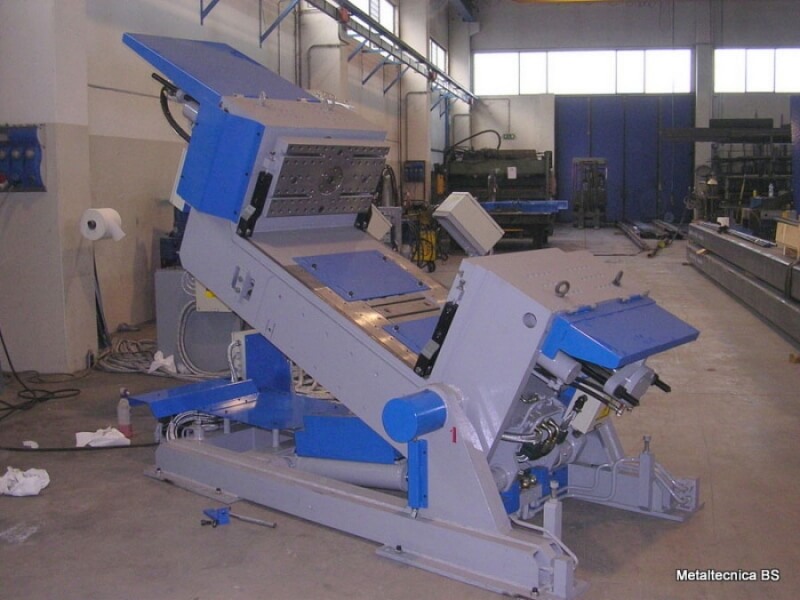

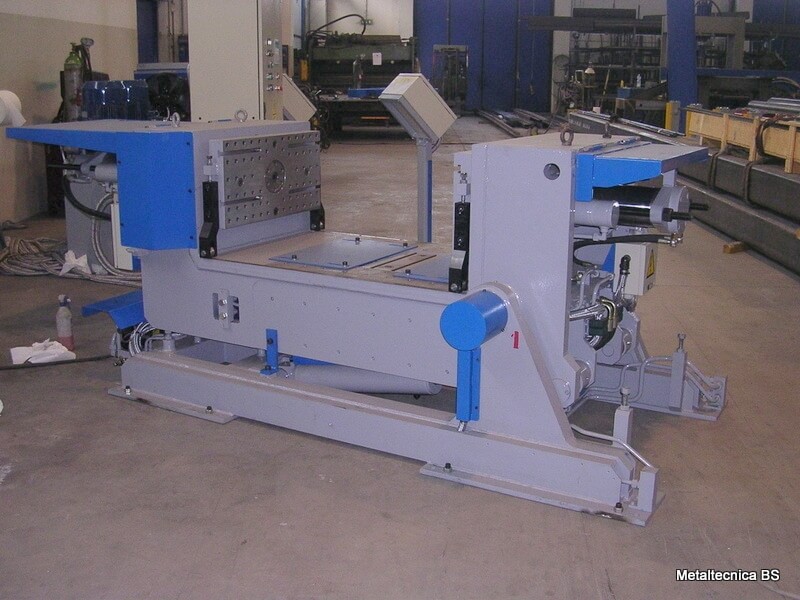

Gravity die casting machine, model HV 1100, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically automotive parts.
Composed of: fixed base, mobile cradle with 90 ° inclination, 2 horizontal mobile shelves complete with side extractions, extraction on mobile table, lower extraction, electrical management system, hydraulic control unit.
Like any machine for the aluminium gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in the automatic work cell.
Additional information
| Tilt | 0-90° |
|---|---|
| Max opening horiz. | 1100 mm |
| Horizontal upper side tables stroke | 600 mm |
| Horizontal lower side tables stroke inf. | 300 mm |
| Lower ejection stroke | 150 mm |
| Side extraction stroke | 60 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
