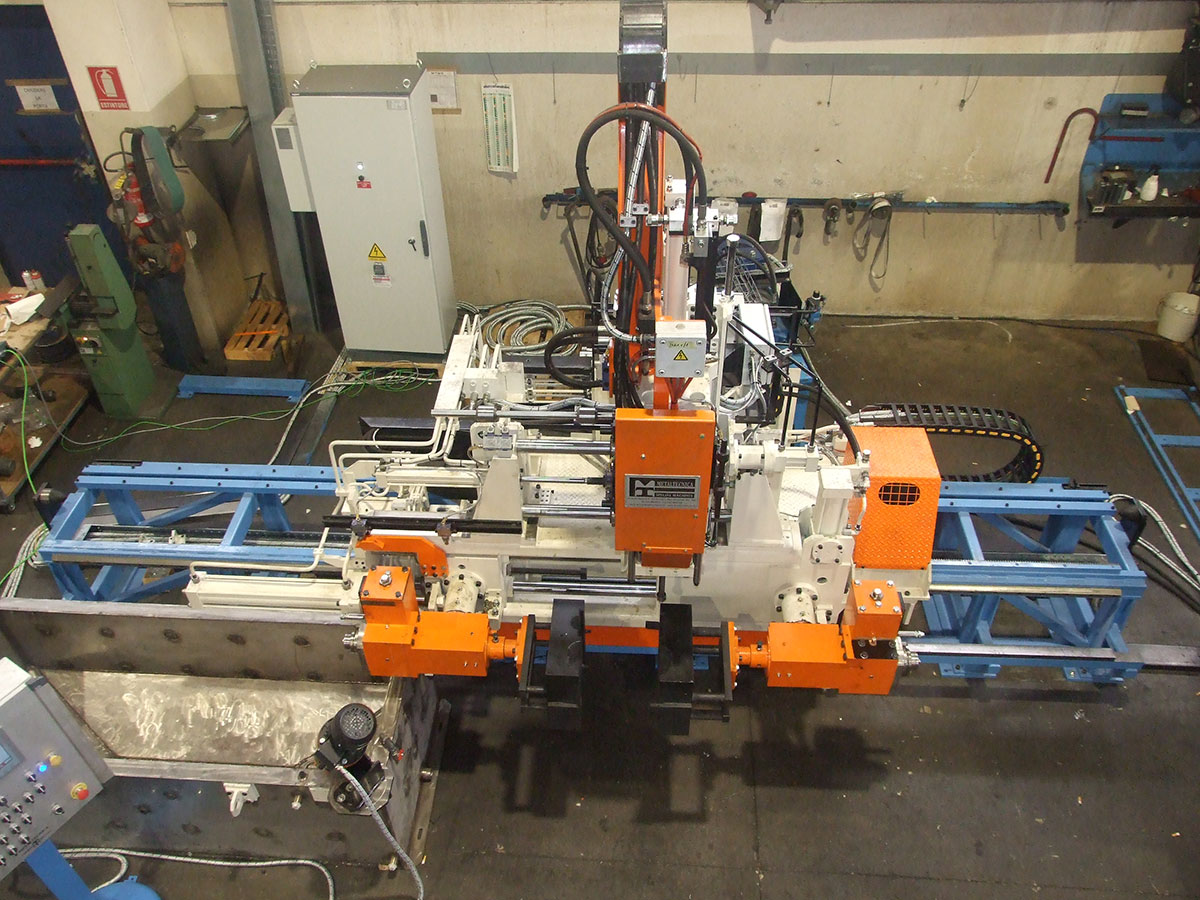

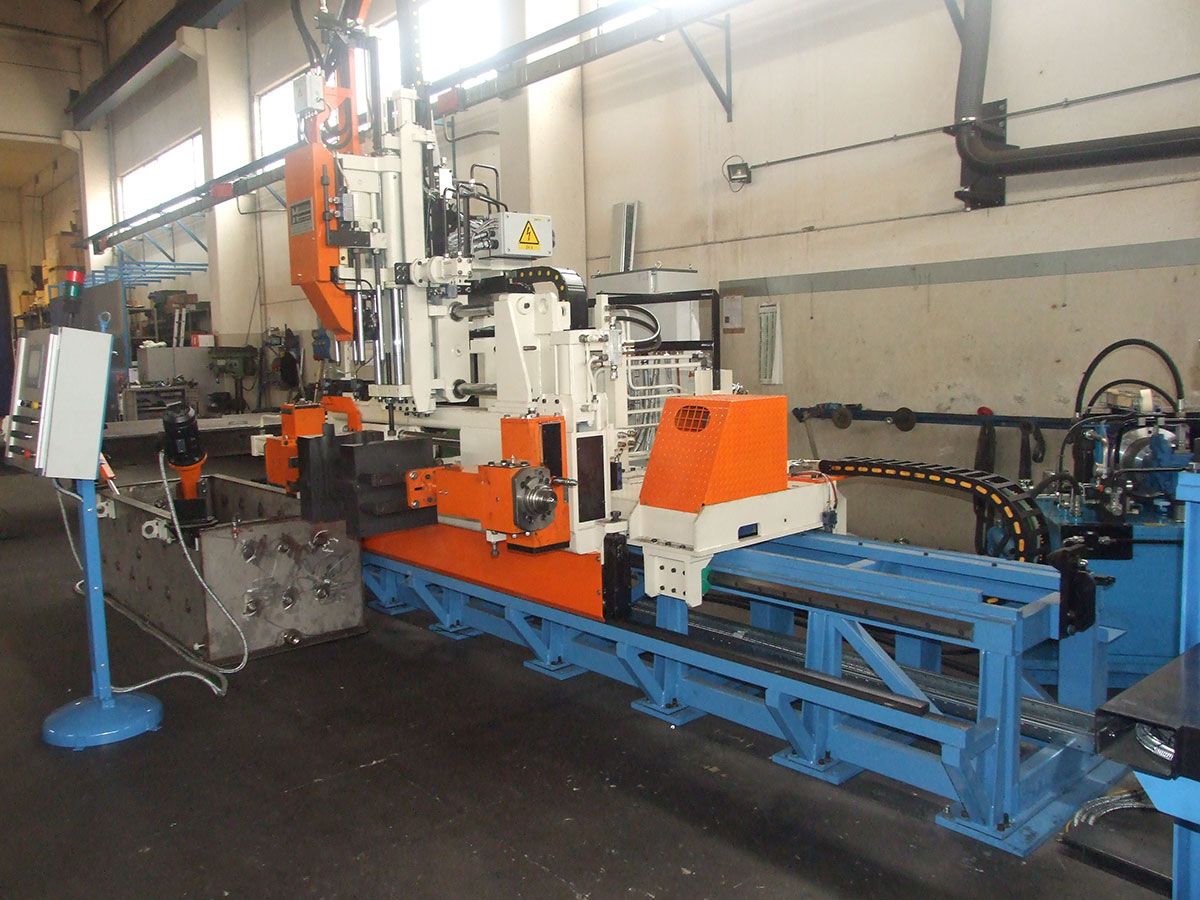

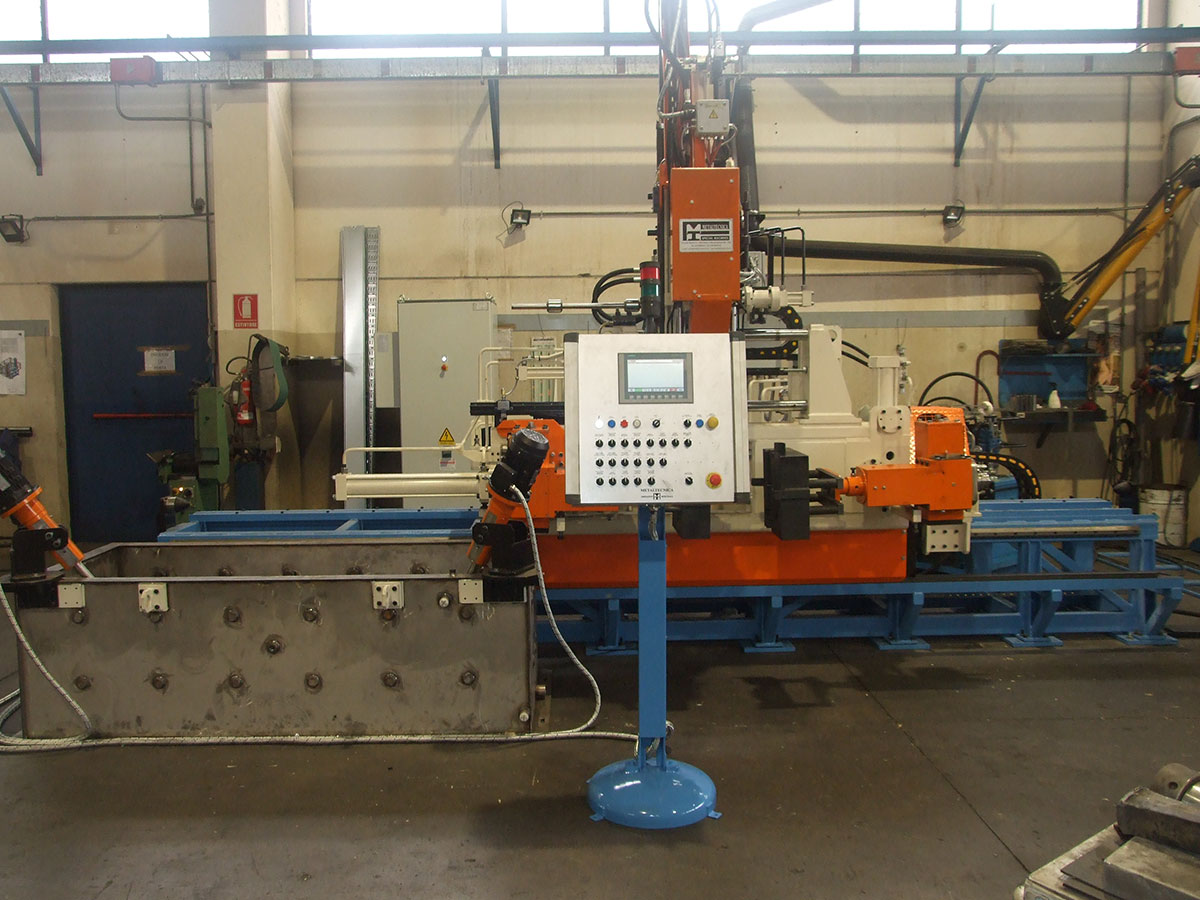

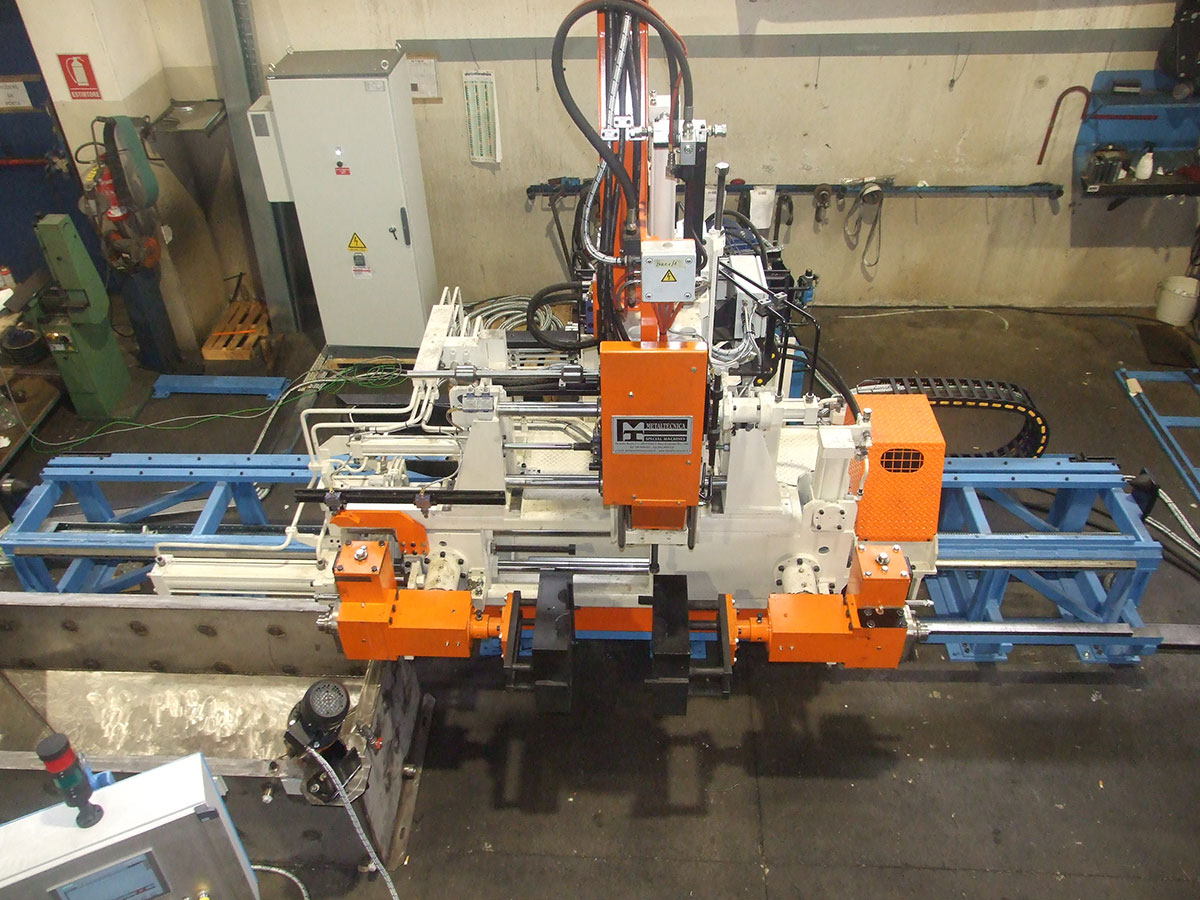

BO-LIN5 bronze die casting machine, suitable for the production of gravity casting parts of non-ferrous alloys, specifically bronze bushings.
Composed of: fixed base, mobile horizontal carriage, 1 head holder group, 1 mobile head, 1 fixed head, mould holder tables with 0-180 ° rotation, extraction on tables, heads with 0-90° rotation for cooling / graphitising mold, mold cooling / graphitising tank complete with mixers, horizontal and vertical movable upper male insertion carriage, rotating lower male group complete with graphitising tank, electrical management system, hydraulic control unit.
Use in a work cell with interface with casting robots.
Additional information
| Single head capacity | 50 Kg |
|---|---|
| Rotating | D 660 mm |
| Max opening between heads | 870 mm |
| Moving head stroke | 650 mm |
| Extraction stroke | 20 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
