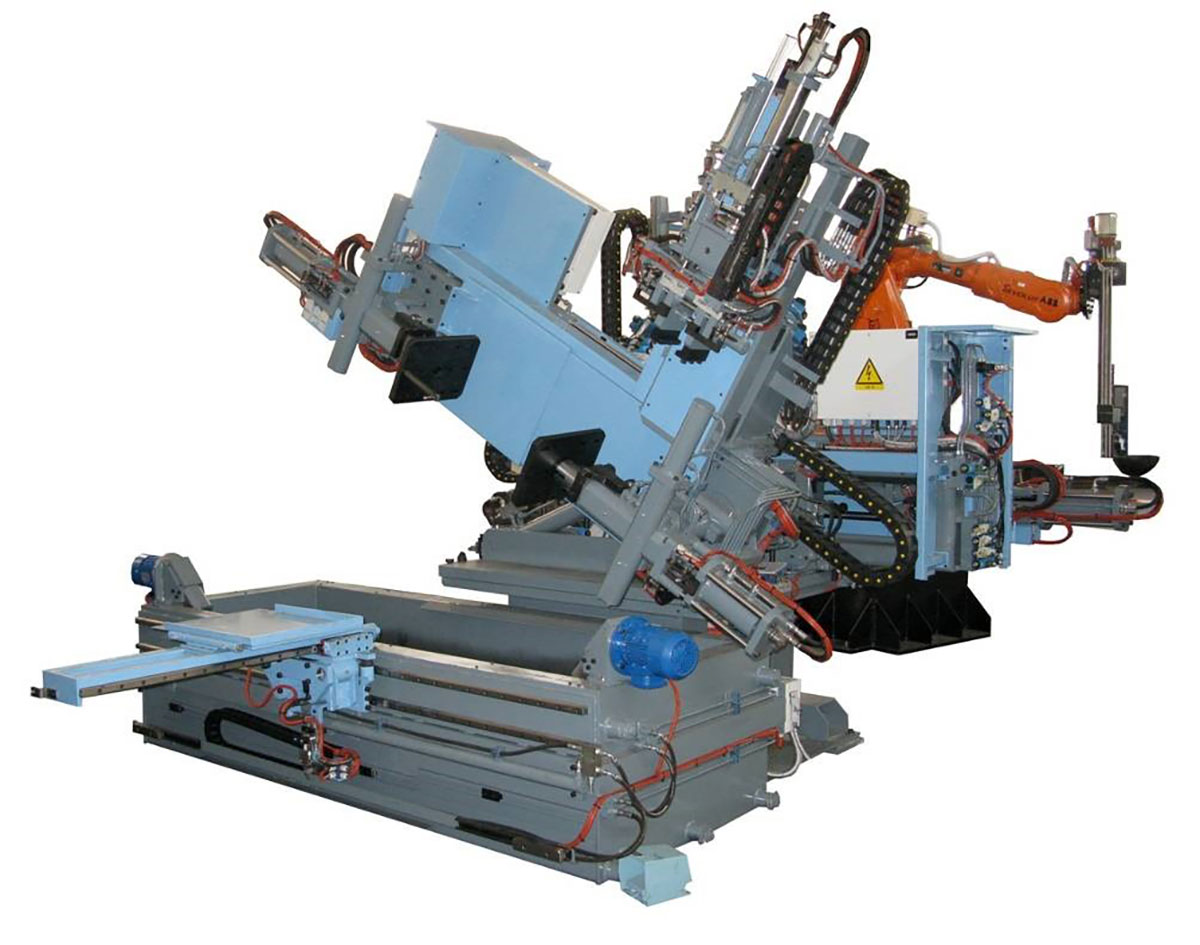

Bronze gravity casting machine model BO-ROTATING 4, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically crowns for gearboxes.
Composed of: fixed base, 0-180 ° rotating table, 2 heads holder groups with adjustable 90 ° inclination, 1 movable head n ° 1 fixed head, mould holder tables with 0-180 ° rotation with proportional logic, heads with 0-90° rotation for mould cooling / graphitising, mould cooling / graphitising tank complete with mixers and piece evacuation carriage, movable horizontal and vertical upper male insertion carriage, electrical management system, hydraulic control unit.
Use in a work cell with interface with casting robots.
Additional information
Rotation | 0-180° |
---|---|
Head unit inclination | 0-45° |
Single head capacity | 90 Kg |
Rotating | D 700 mm |
Max opening between heads | 900 mm |
Moving head stroke | 500 mm |
Tables connections | customizable |
Tables dimensions | customizable |
Tables stroke | customizable |
