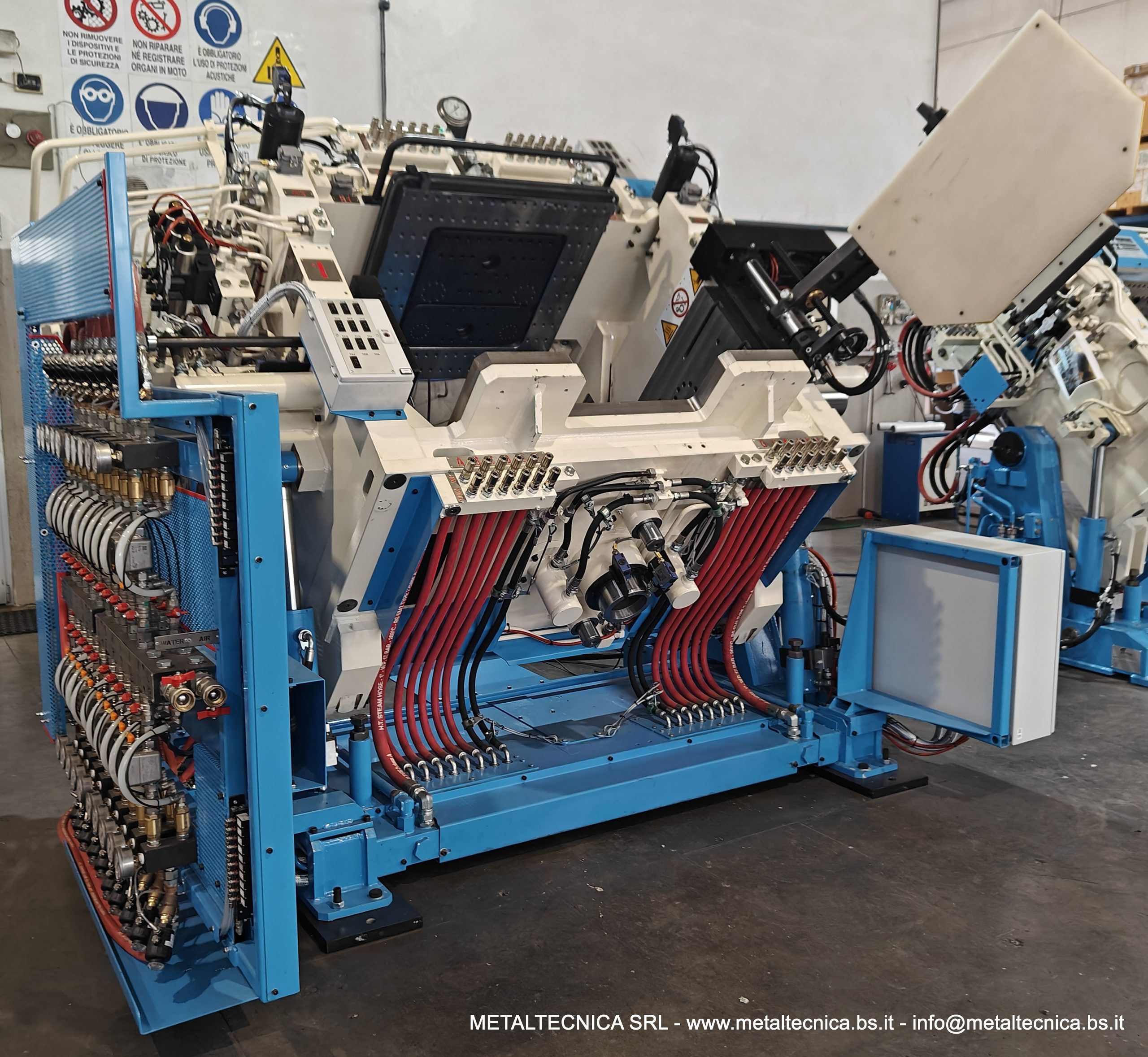

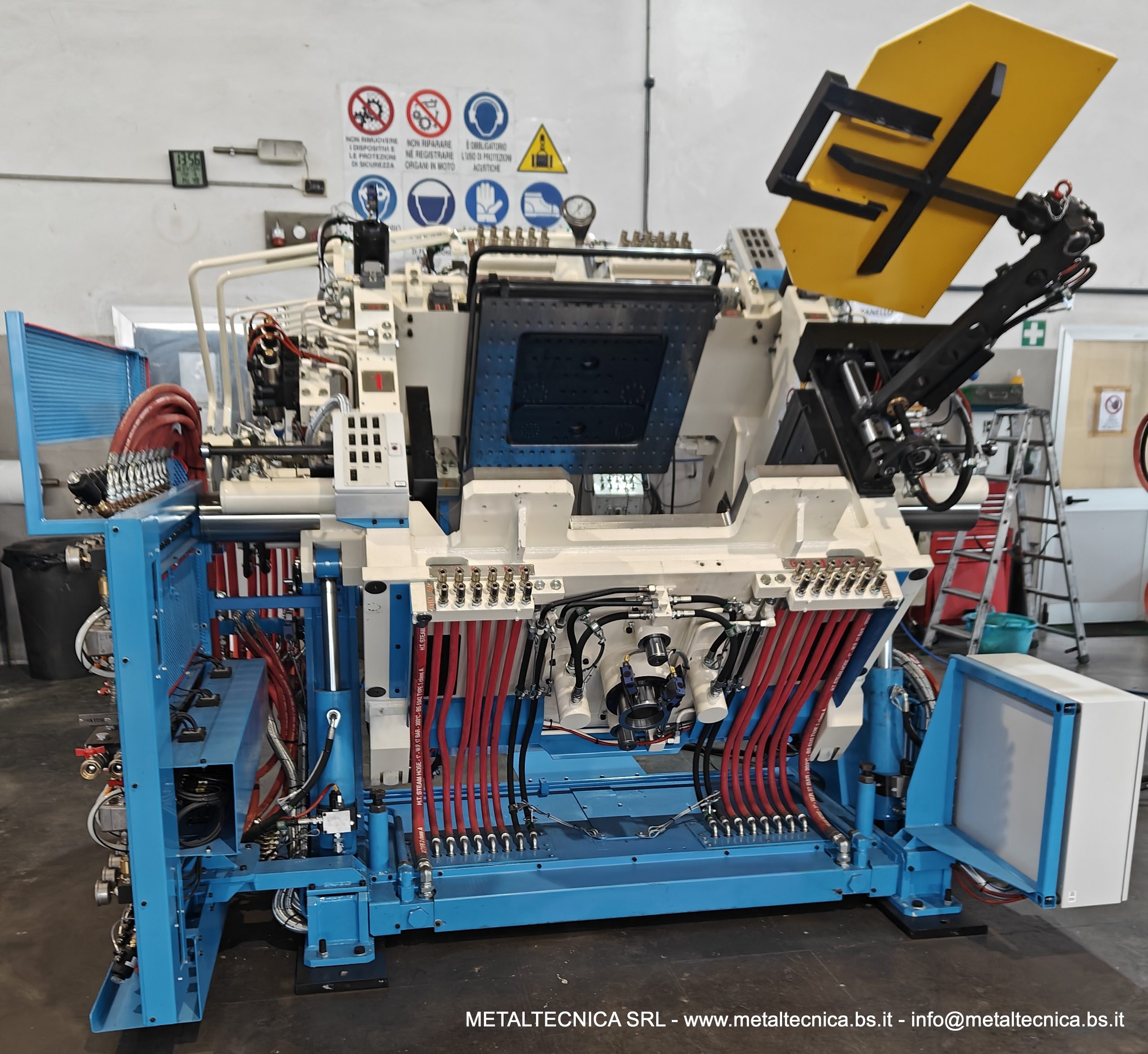

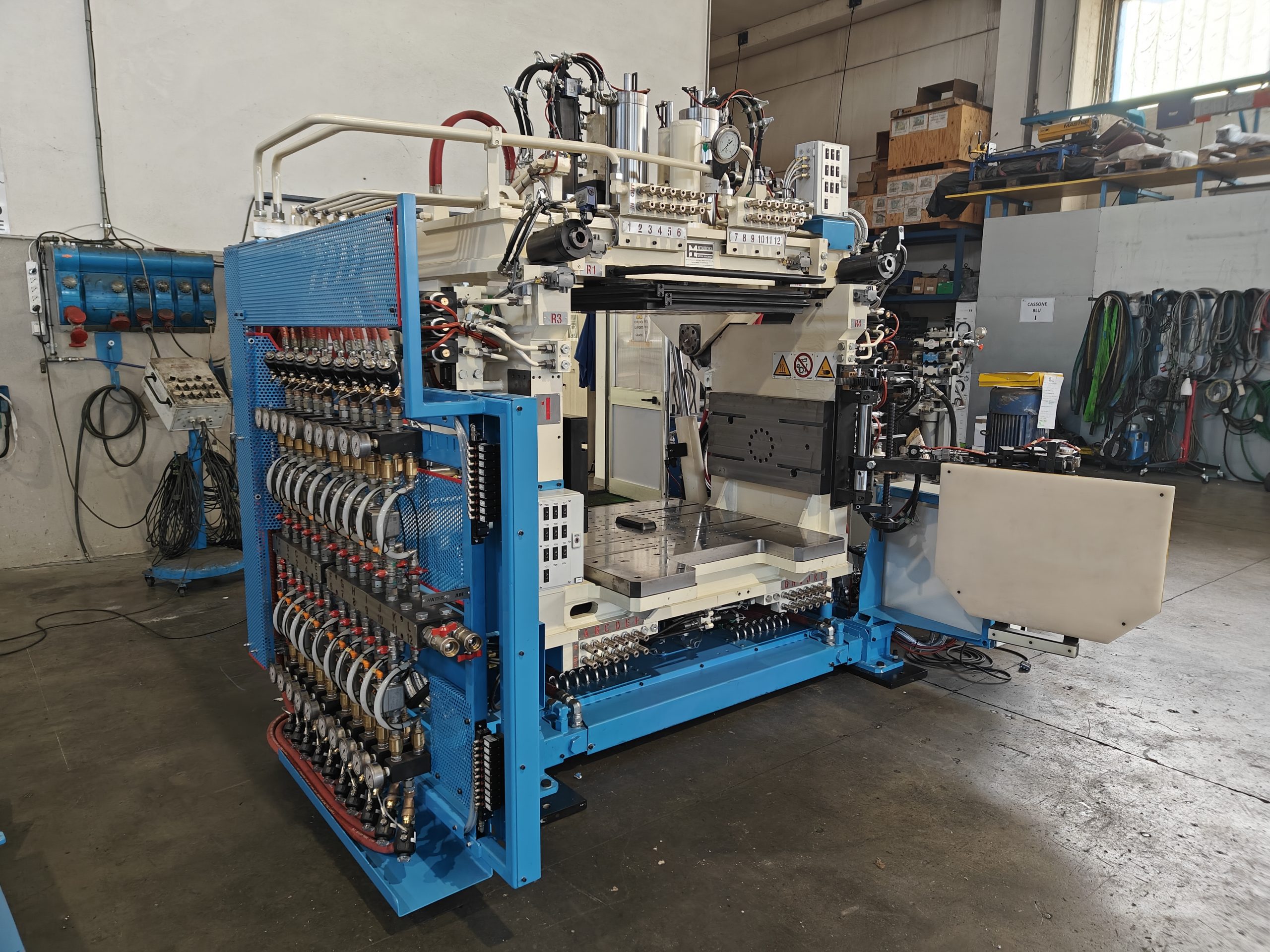

Gravity die casting machine model H1200-E PR, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically aluminium automotive parts.

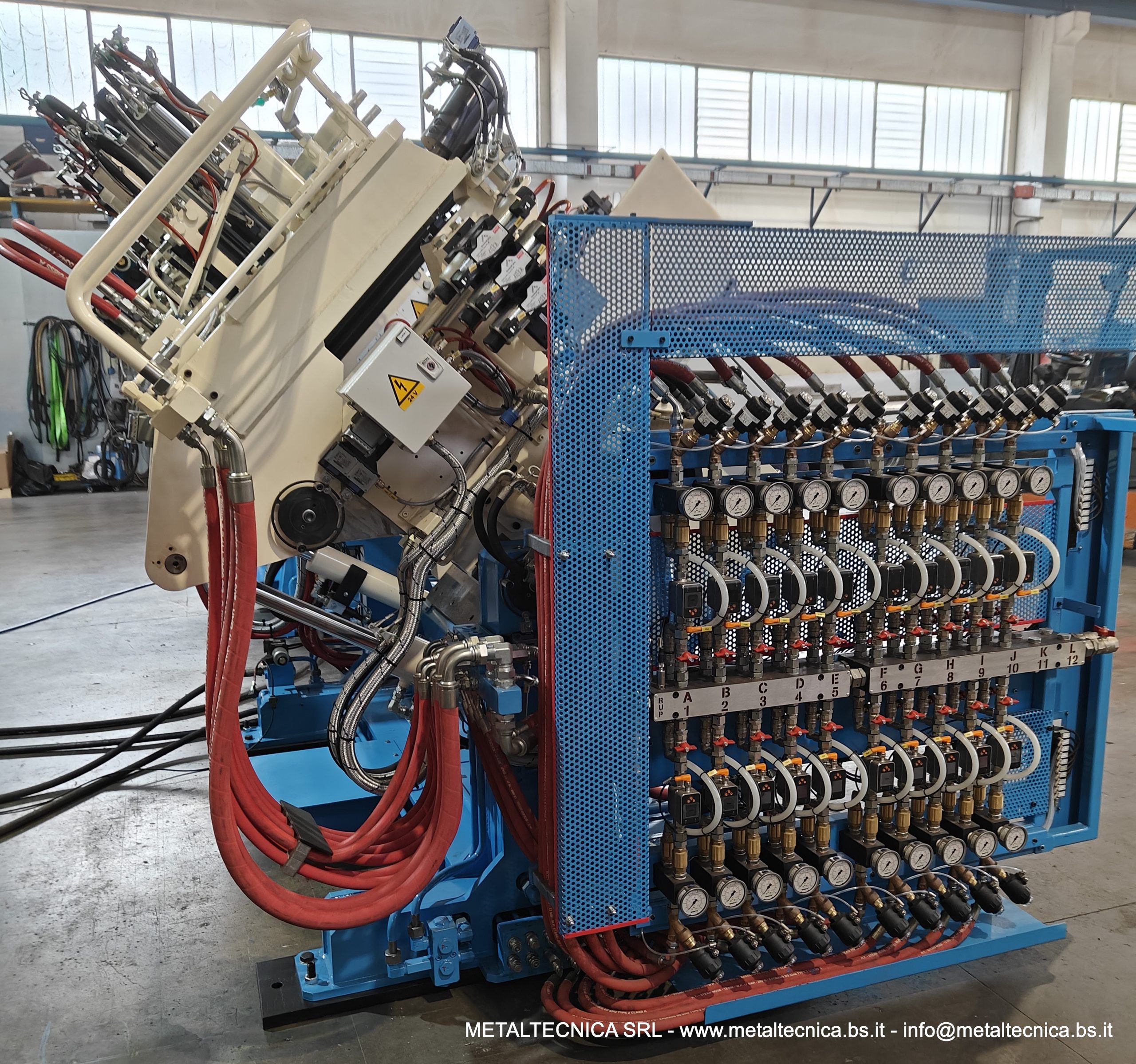

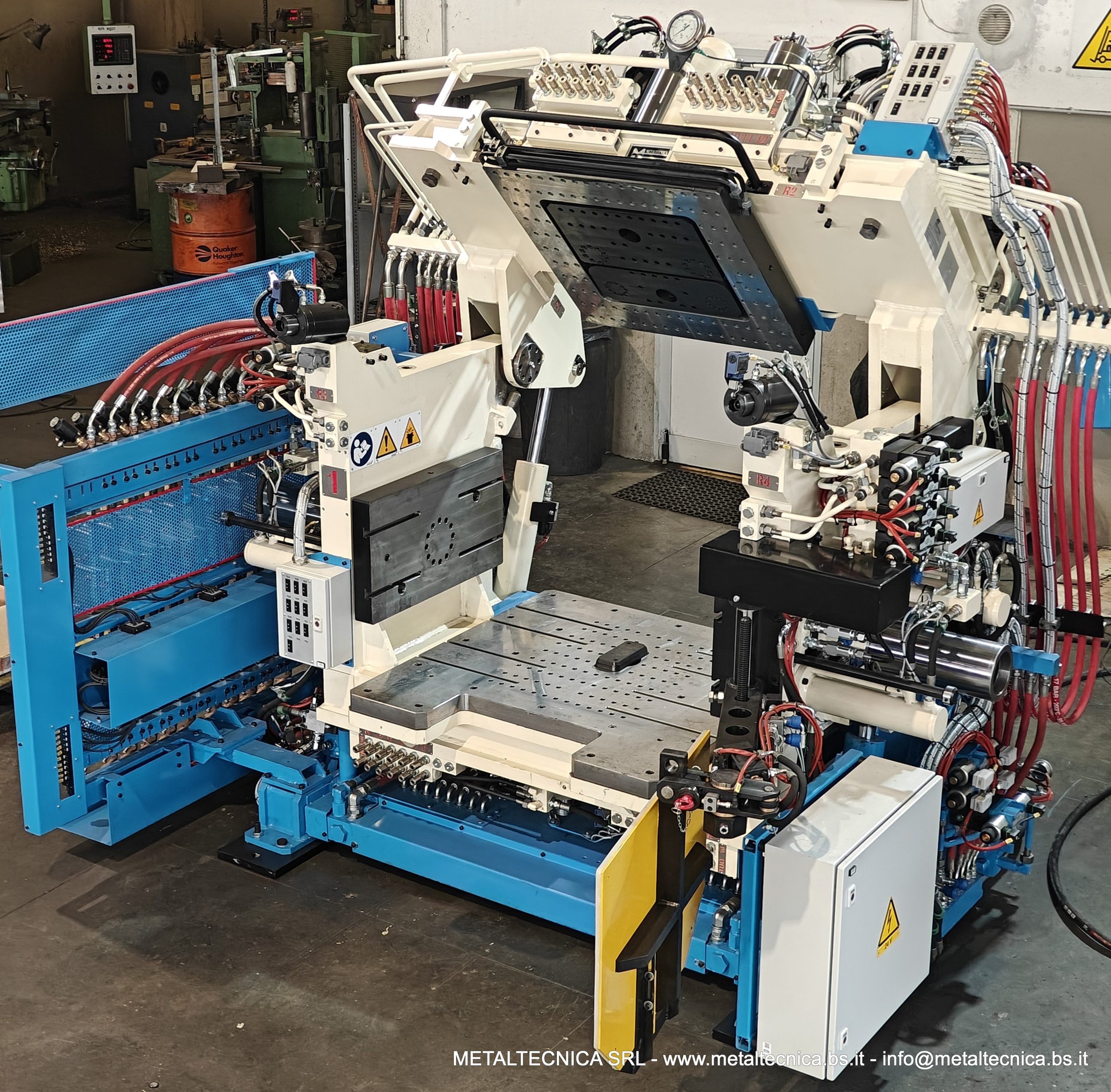

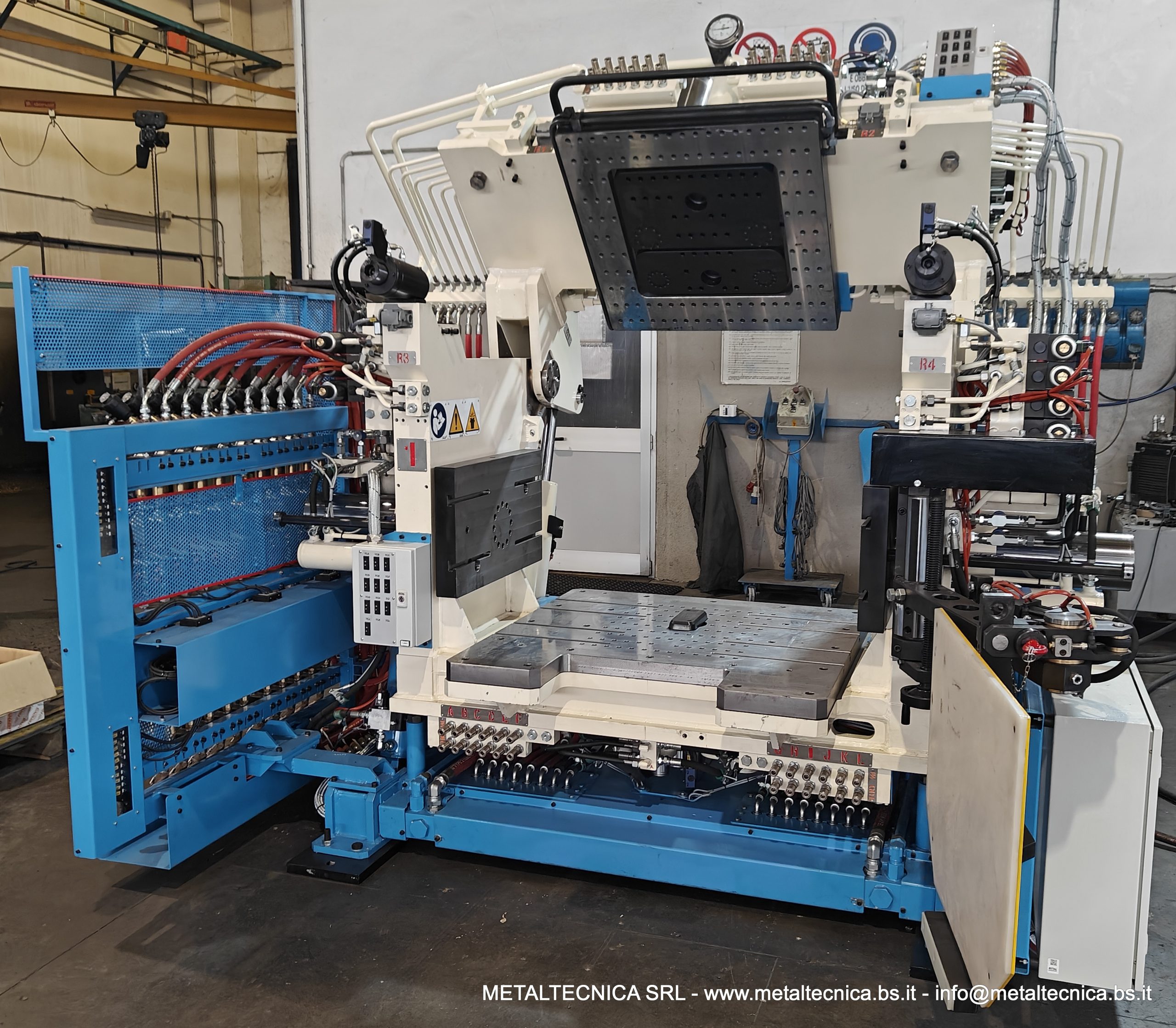

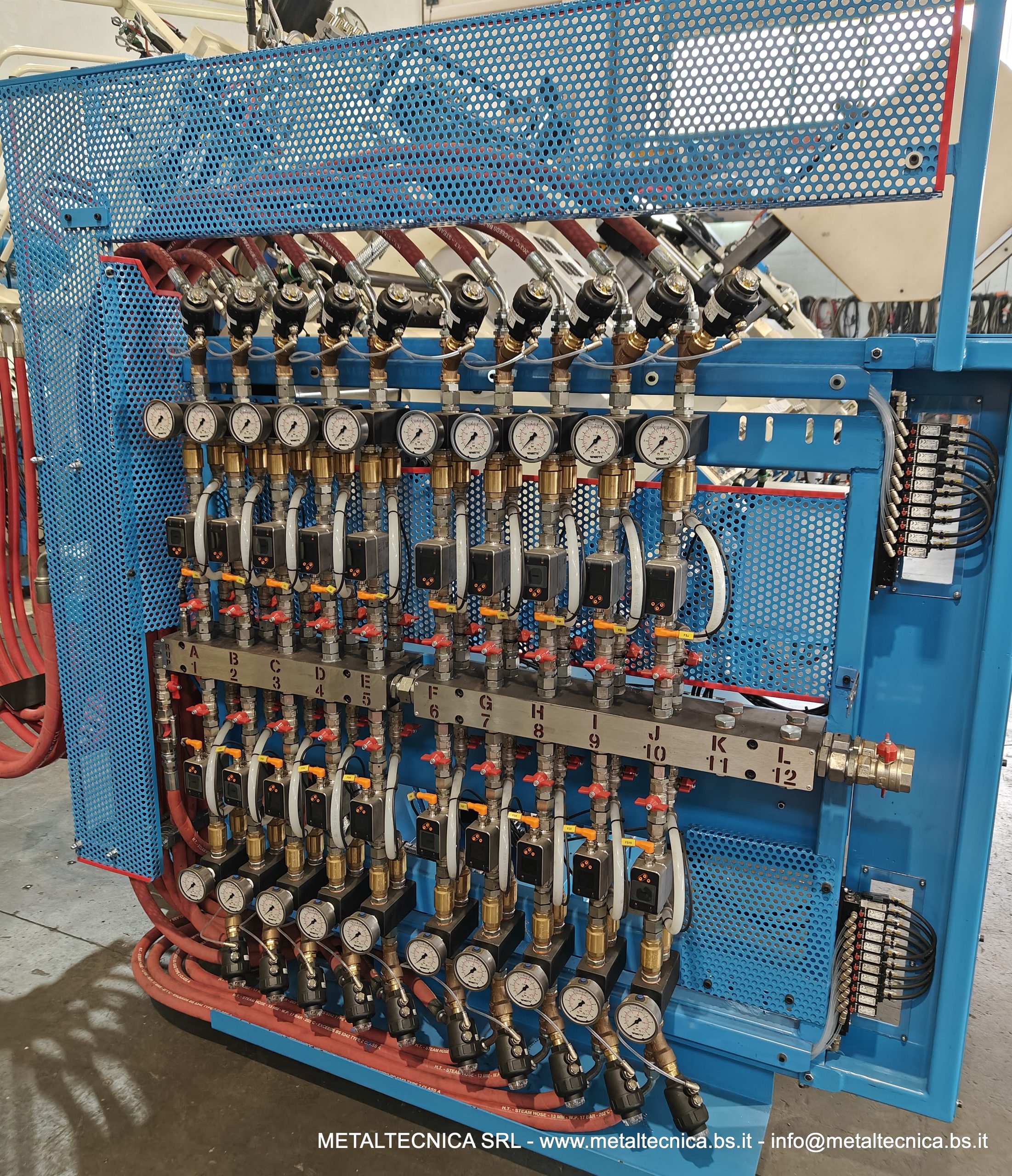

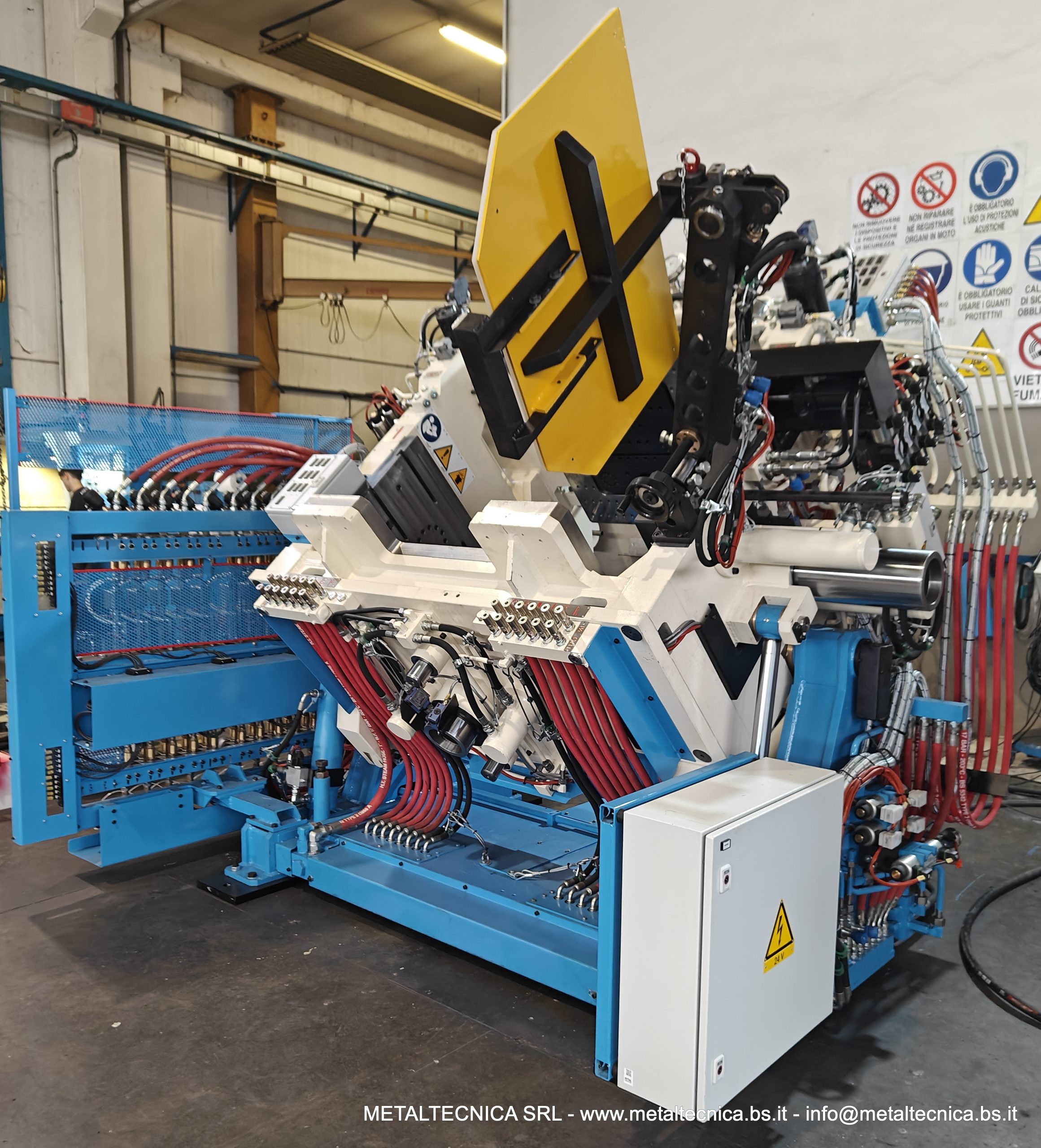

Composed of: fixed base, mobile cradle with 45 ° tilting with proportional logic, 2 horizontal mobile shelves, lower extraction, upper deck with 120 ° opening, 0 ° upper deck closure with safety latches, piping on board for managing 15 mould coolings, piping on board to manage 8 flame burners, 4 electric resistors, electrical management system, hydraulic control unit.
Use in a work cell with interface with casting robots.
Additional information
| Tilt | 0-45° |
|---|---|
| Upper deck opening | 120° |
| Max opening horiz. | 1200 mm |
| Max opening vert. | 900 mm |
| Side tables stroke | 400 mm |
| Upper table stroke | 400 mm |
| Stroke upper extraction 1 | 60 mm |
| Stroke upper extraction 2 | 90 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
| Unloading arm | Unloading arm |
