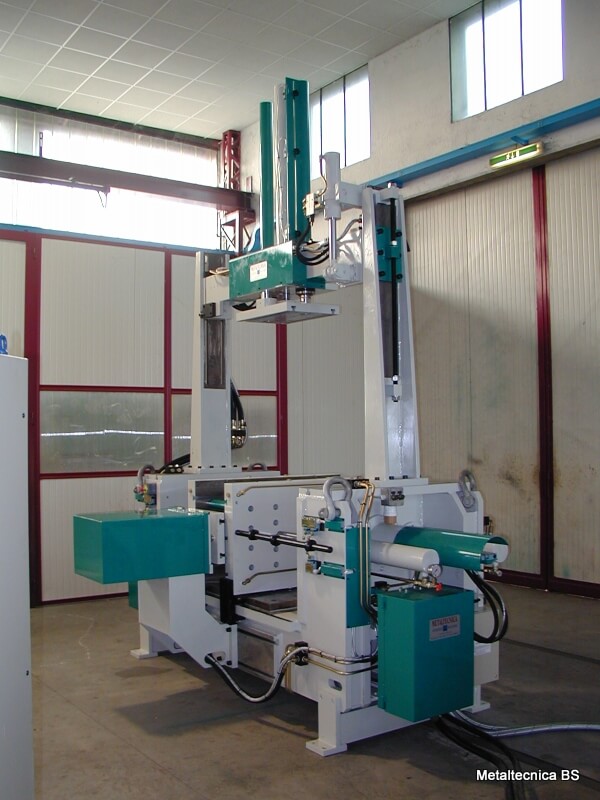

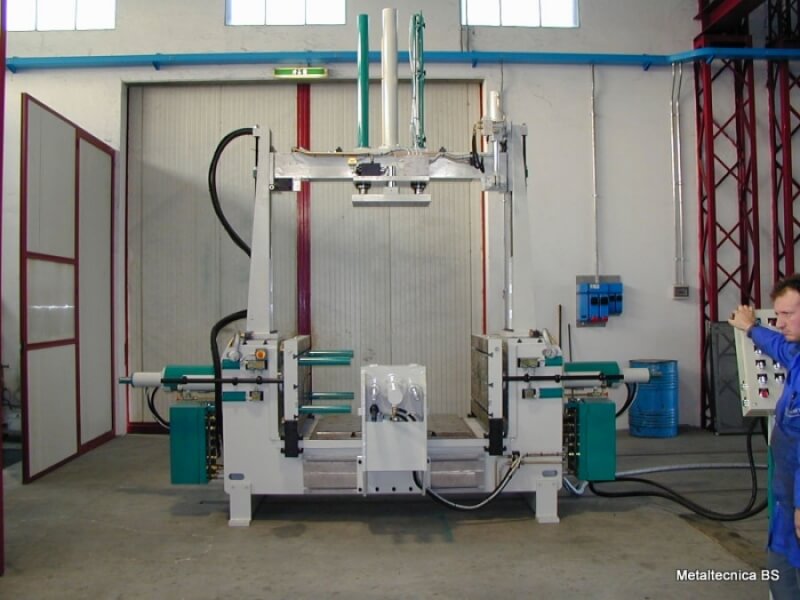

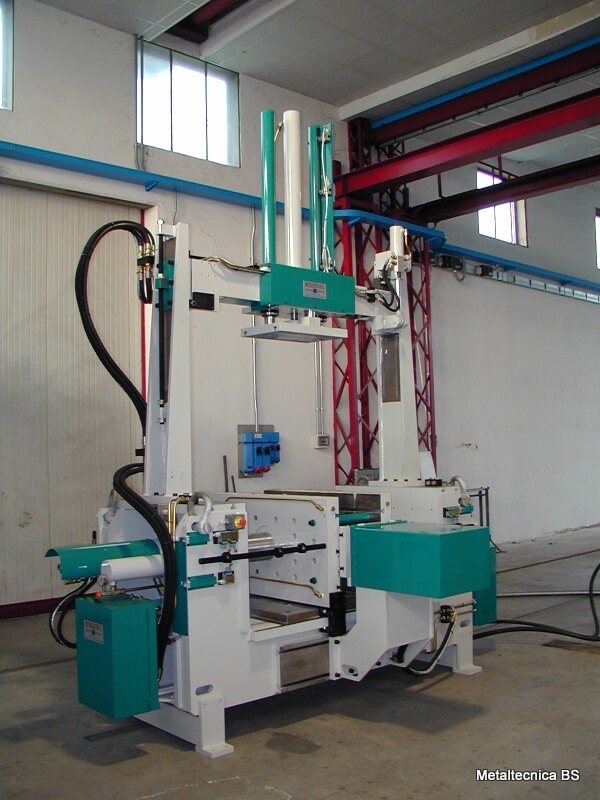

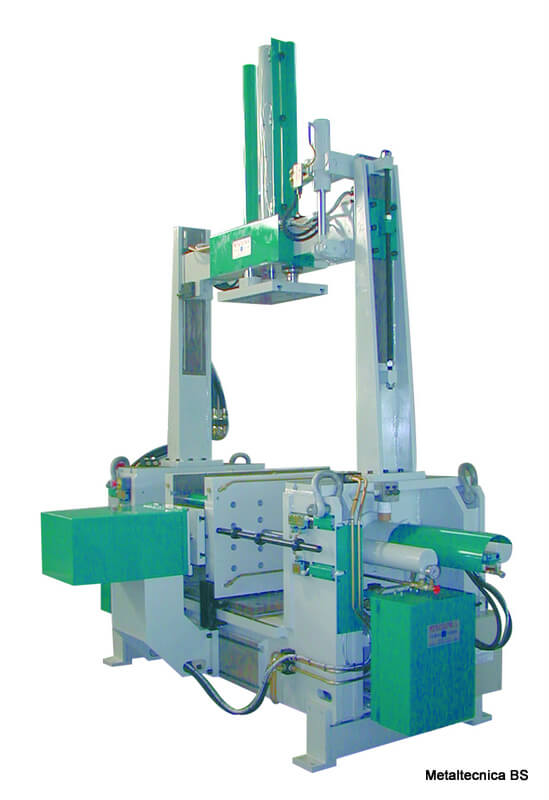

Universal gravity die casting machine model HF 1400, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically automotive parts, consisting of: fixed base, 2 horizontal mobile shelves complete with side extraction, lower extraction, upper deck with release movement 45 ° and adjustable in height, 1 side shelf, electrical management system, hydraulic control unit
Like any machine for aluminium gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in a work cell with interface with casting robots with proportional tilting integration.
Additional information
Max opening horiz. | 1400 mm |
---|---|
Max opening vert. | 1300 mm |
Side tables stroke | 450 mm |
Upper table stroke | 1000 mm |
Lower ejection stroke | 50 mm |
Side extraction stroke | 50 mm |
Tables connections | customizable |
Tables dimensions | customizable |
Tables stroke | customizable |
