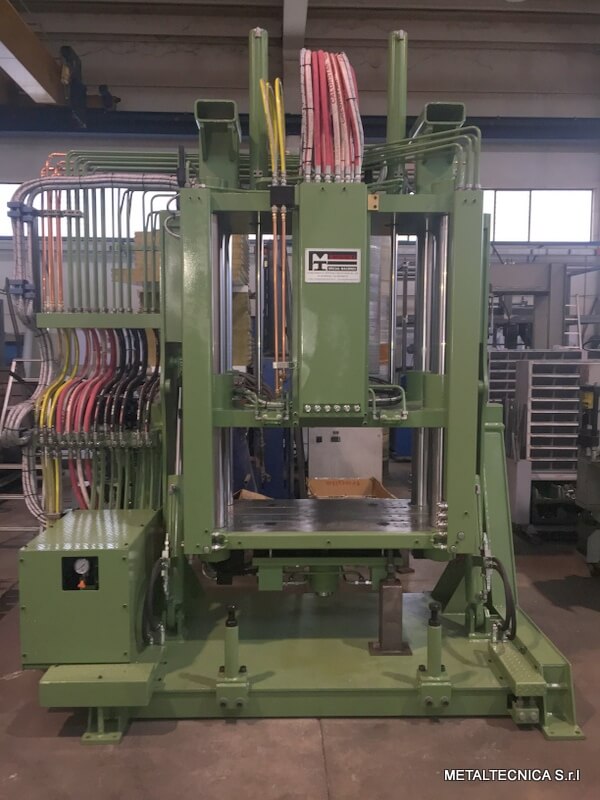

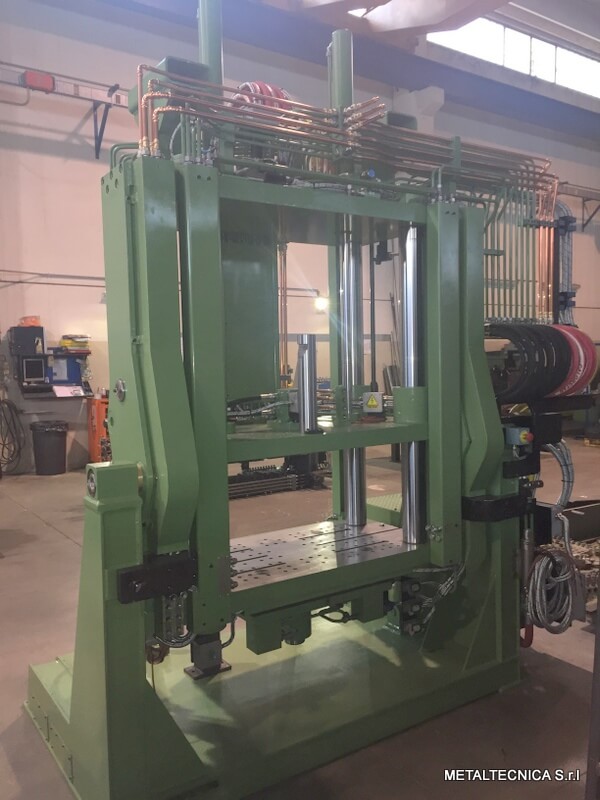

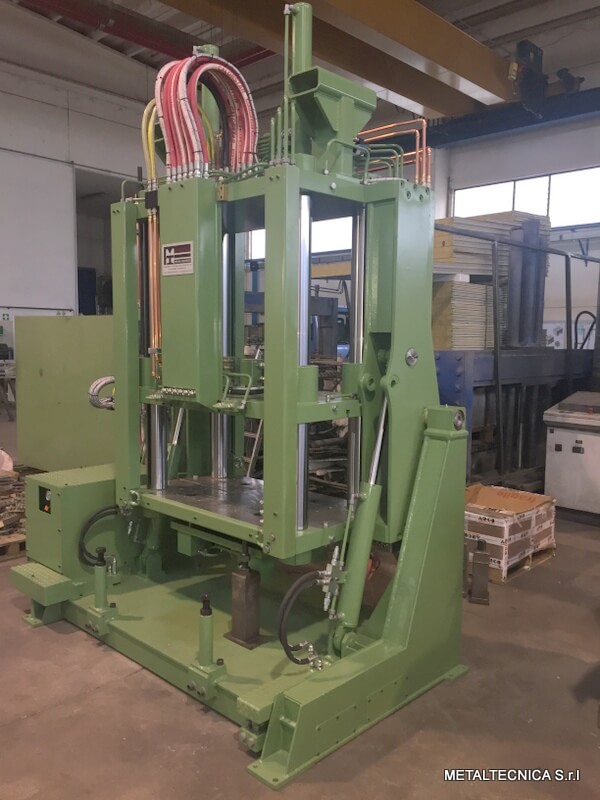

Gravity die casting machine model HV 1200 special, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically aluminium parts for motorcycles.

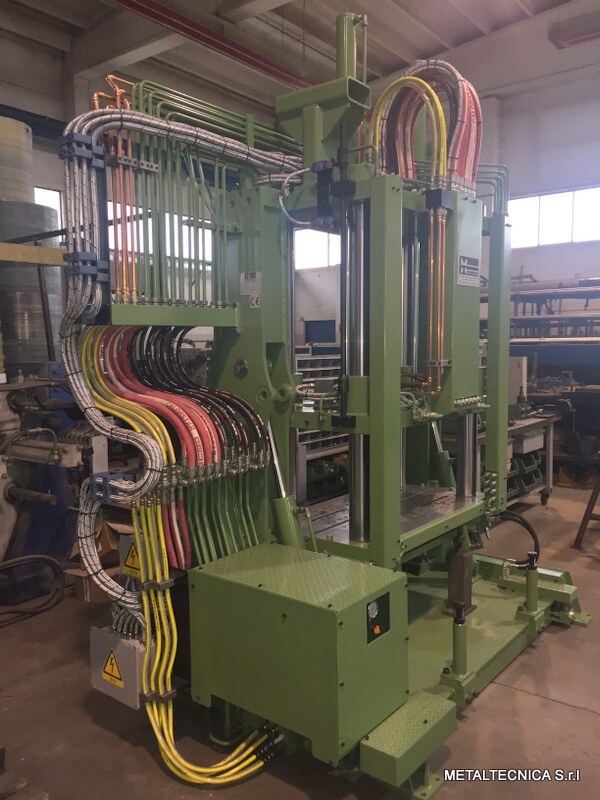

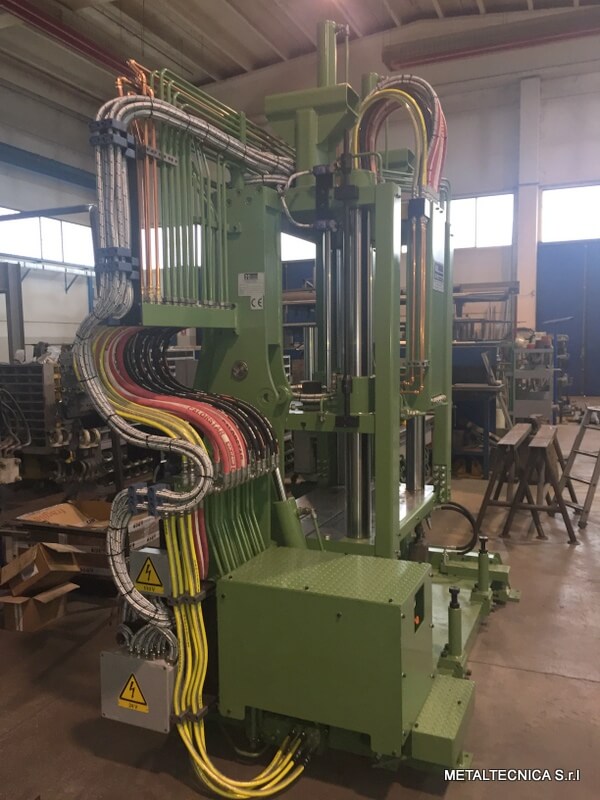

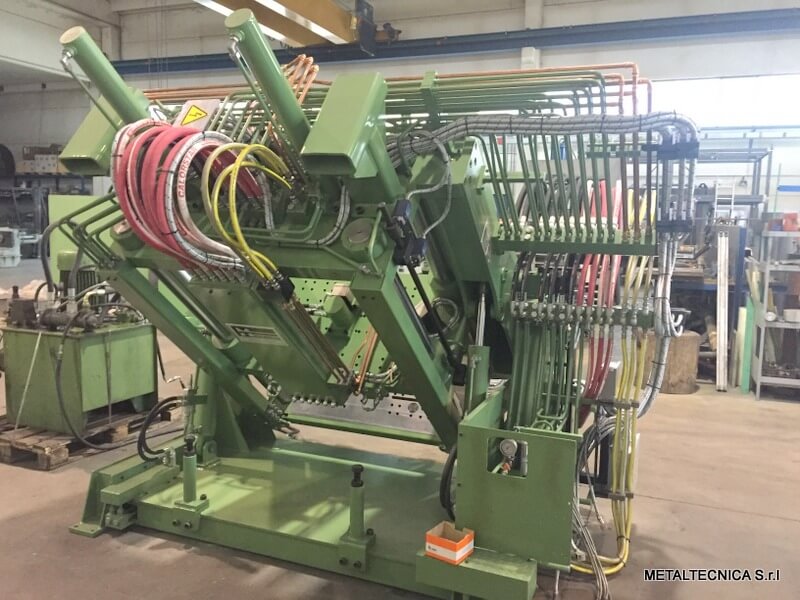

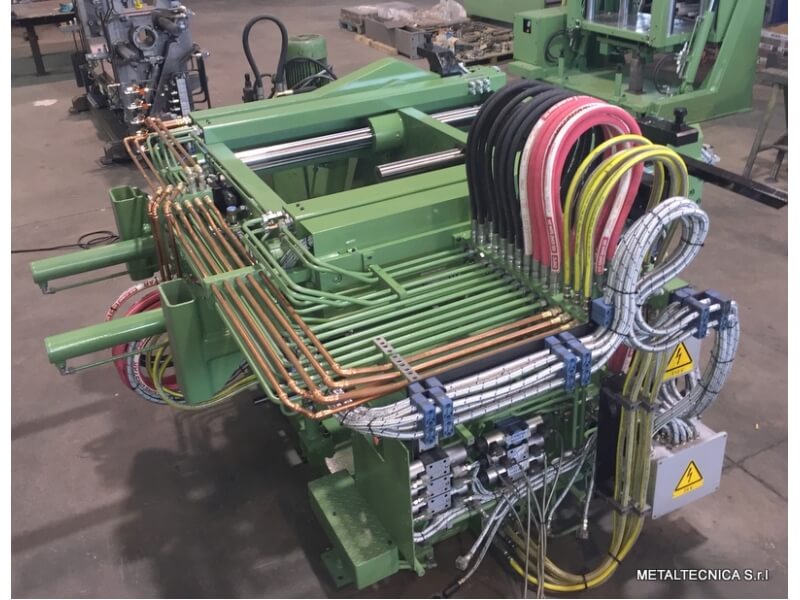

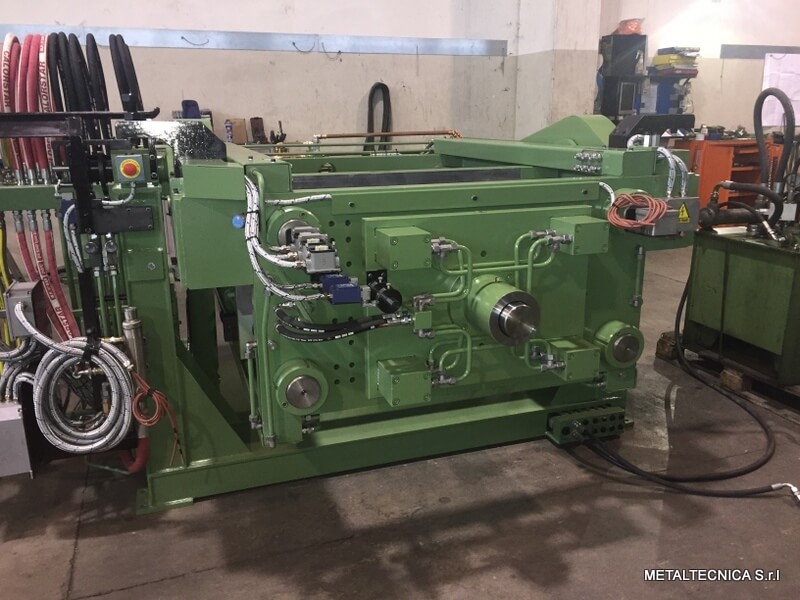

Composed of: fixed base, mobile cradle with 90 ° tilting with proportional logic, mobile upper table complete with extraction, lower extraction, piping on board for managing 6 mold cooling, piping on board for managing 8 flame burners, 4 electric resistances, electrical management system, hydraulic unit.
Like any machine for the aluminium gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in the work cell.
Additional information
| Tilt | 0-90° |
|---|---|
| Max opening vert. | 1200 mm |
| Mobile plate stroke | 700 mm |
| Upper ejection stroke | 50 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
