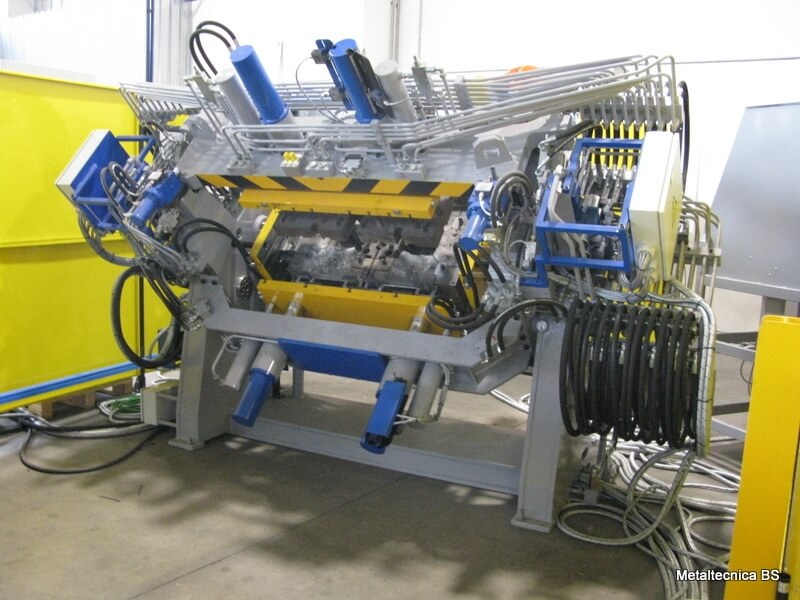

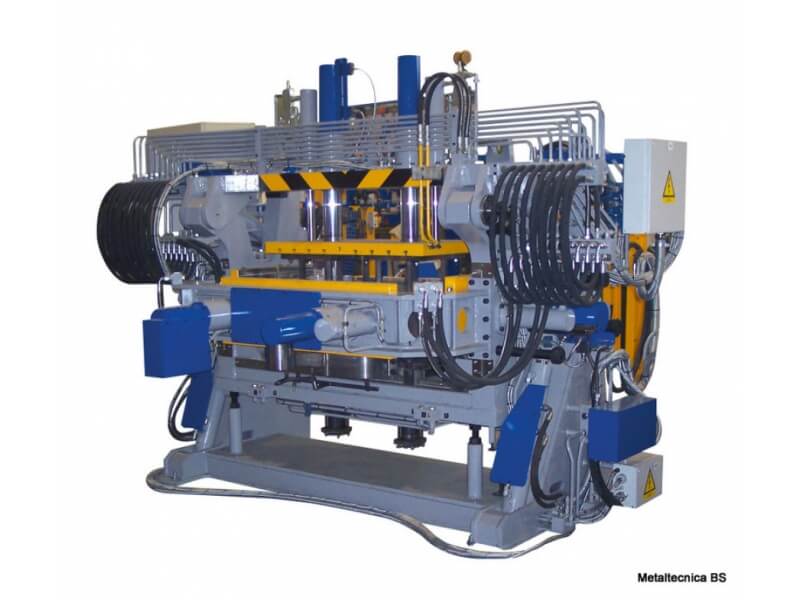

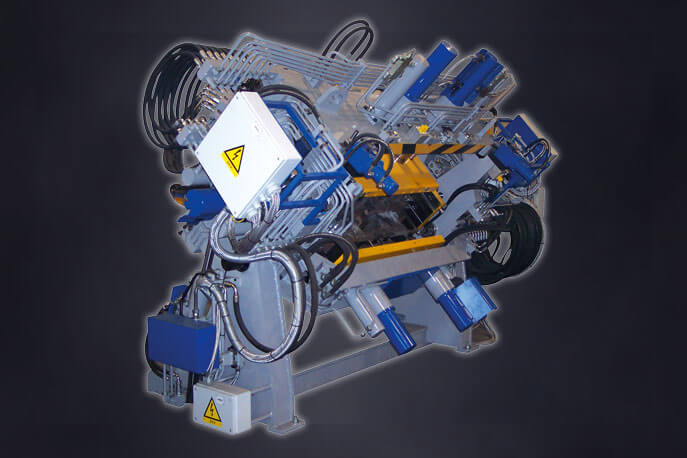

Gravity die casting machine model H 1300 PR special, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically heads of motorcycle engines, composed of: fixed base, mobile cradle with 90 ° inclination with proportional logic, 2 horizontal moving planes, lower ejection, upper deck with 120 ° opening, 0 ° closing upper deck with safety latches, 2 side shelves, piping on board for managing 10 mould cooling pipes.

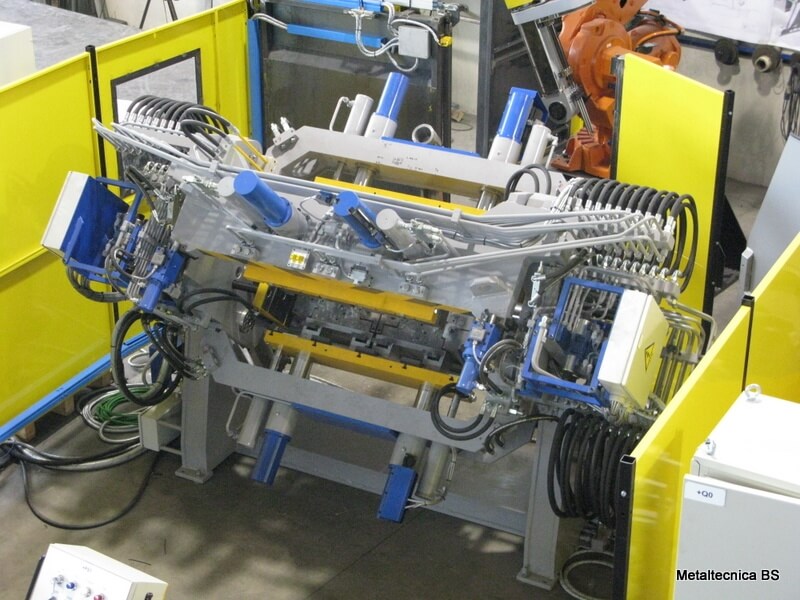

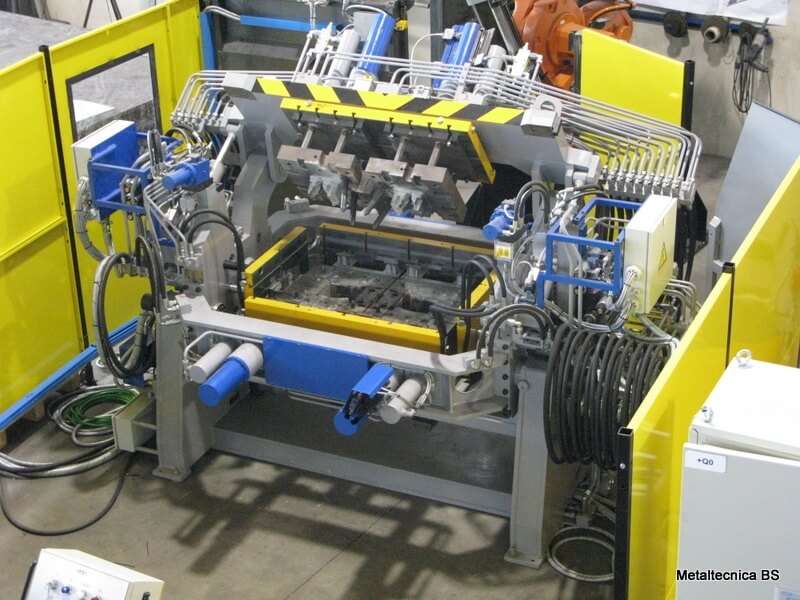

Use in automatic cell with interface with casting robots.
Additional information
| Tilt | 0-90° |
|---|---|
| Upper deck opening | 120° |
| Max opening horiz. | 1300 mm |
| Max opening vert. | 800 mm |
| Max lateral opening | 980 mm |
| Side tables stroke | 200 mm |
| Side shelf travel | 200 mm |
| Upper table stroke | 300 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
