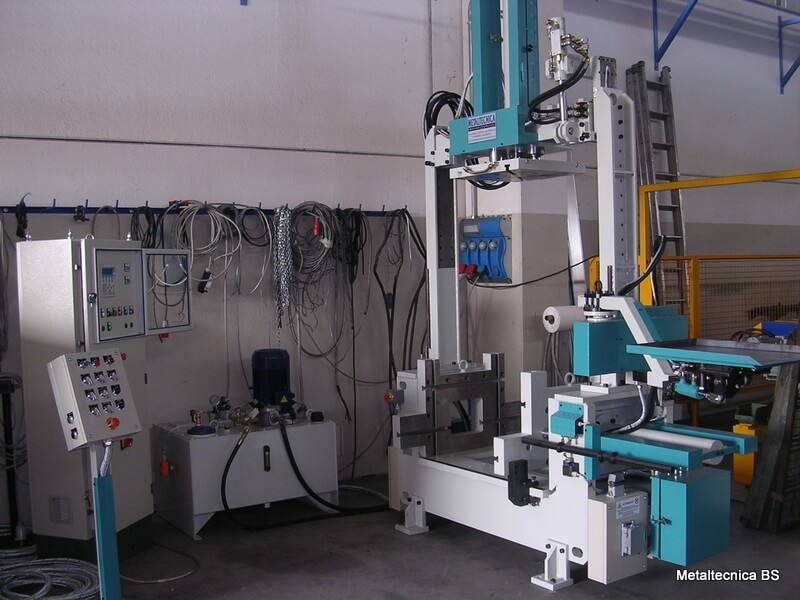

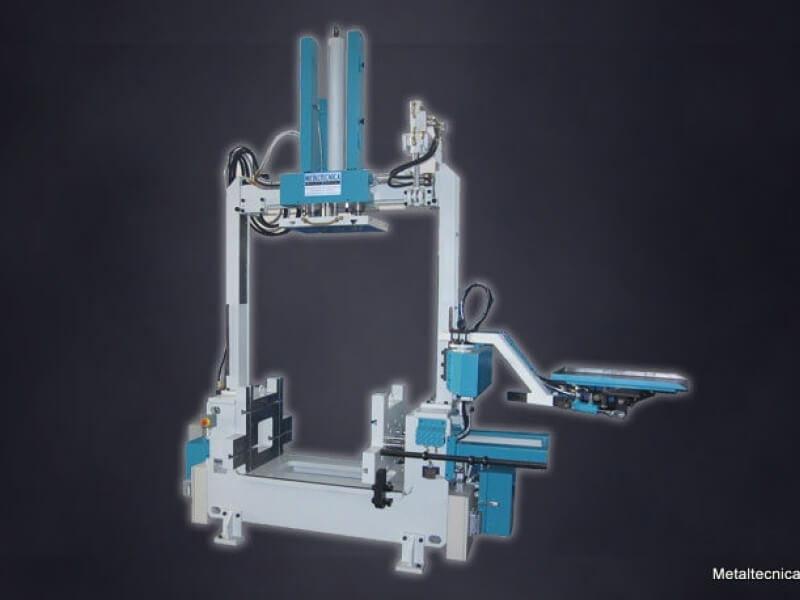

Universal gravity die casting machine model HF 1000, suitable for the production of parts in gravity casting of non-ferrous alloys, in particular parts for motorcycles, consisting of: fixed base, lower extraction, 1 horizontal movable plane, upper deck with 45 ° release movement and adjustable in height, unloading arm.
Like any machine for the aluminium gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in a work cell with interface with casting robots.
Additional information
| Max opening horiz. | 1000 mm |
|---|---|
| Max opening vert. | 1300 mm |
| Upper table stroke | 800 mm |
| Side tables stroke | 500 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
