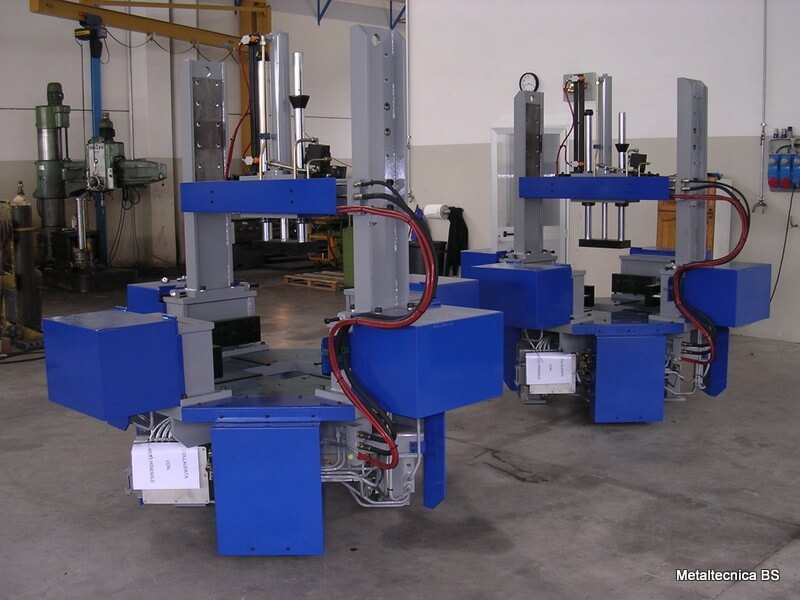

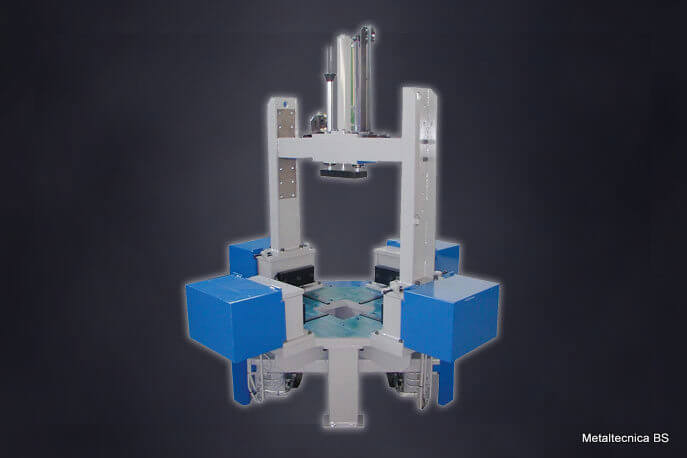

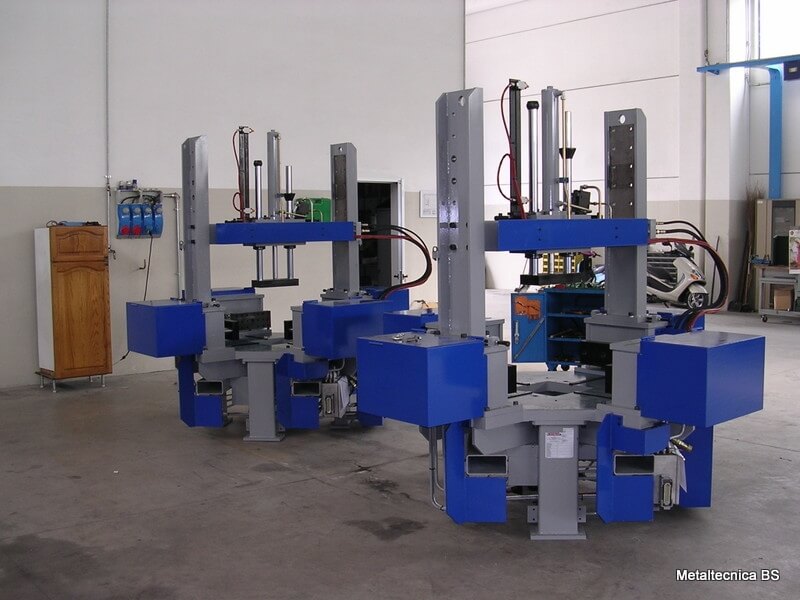

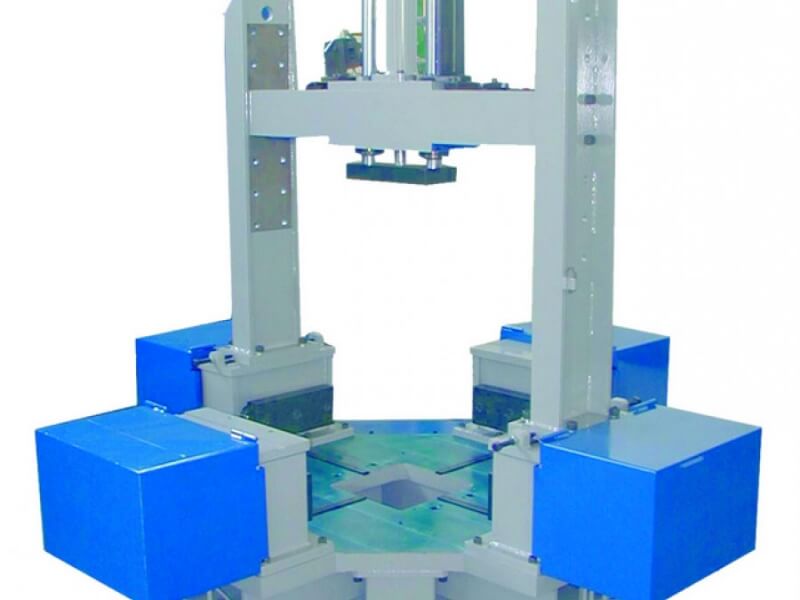

Gravity die casting machine, model HF 1200 4M, suitable for the production of parts in gravity casting of non-ferrous alloys, composed of: fixed base, 4 horizontal mobile shelves, lower central extraction, height-adjustable upper deck, electrical management system, hydraulic unit.
Like any machine for the aluminium gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in the automatic work cell.
Additional information
| Max opening horiz. | 1400 mm |
|---|---|
| Max opening vert. | 1300 mm |
| Max lateral opening | 1400 mm |
| Side tables stroke | 450 mm |
| Upper table stroke | 700 mm |
| Lower ejection stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
