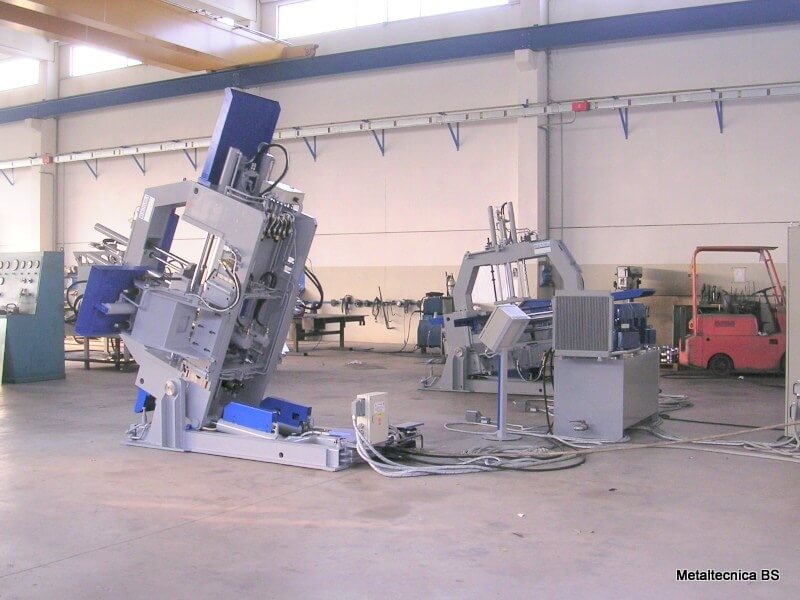

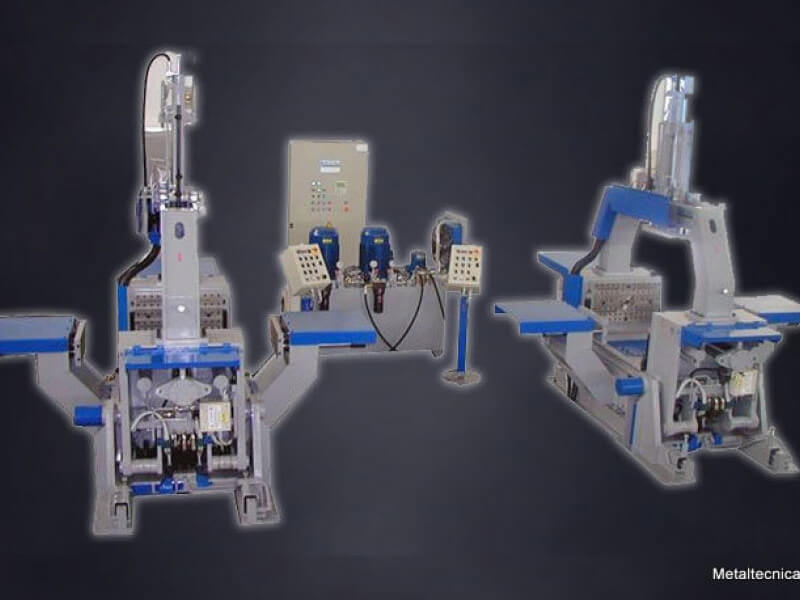

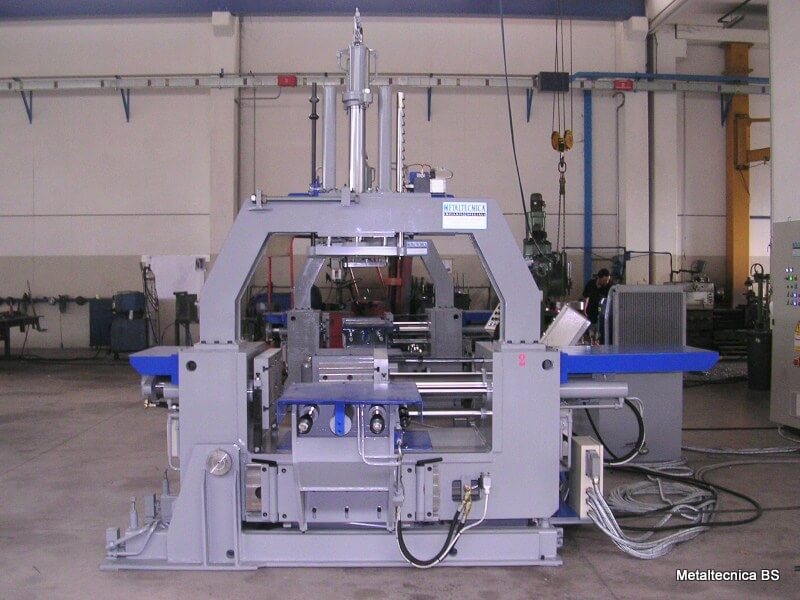

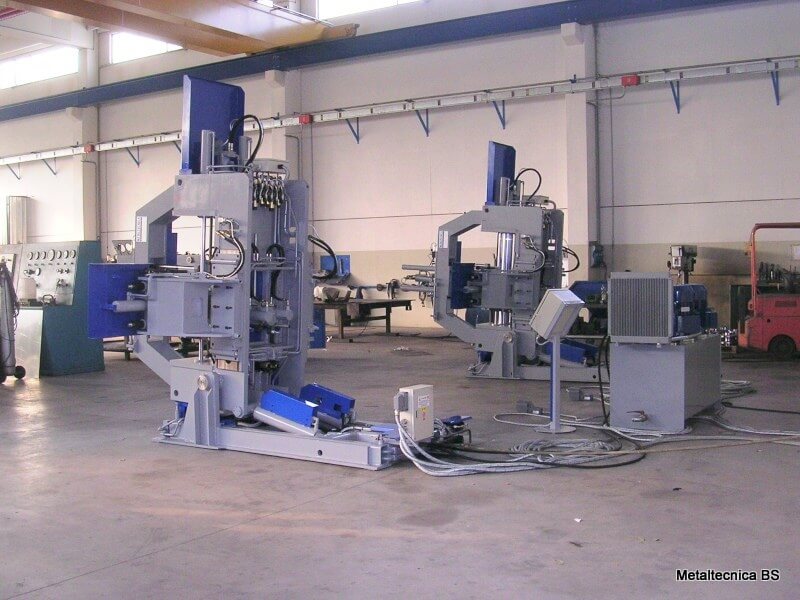

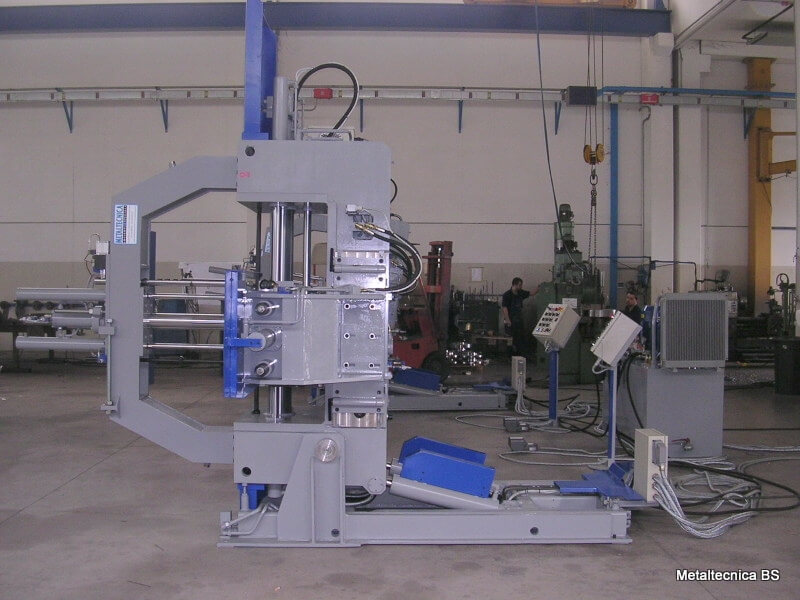

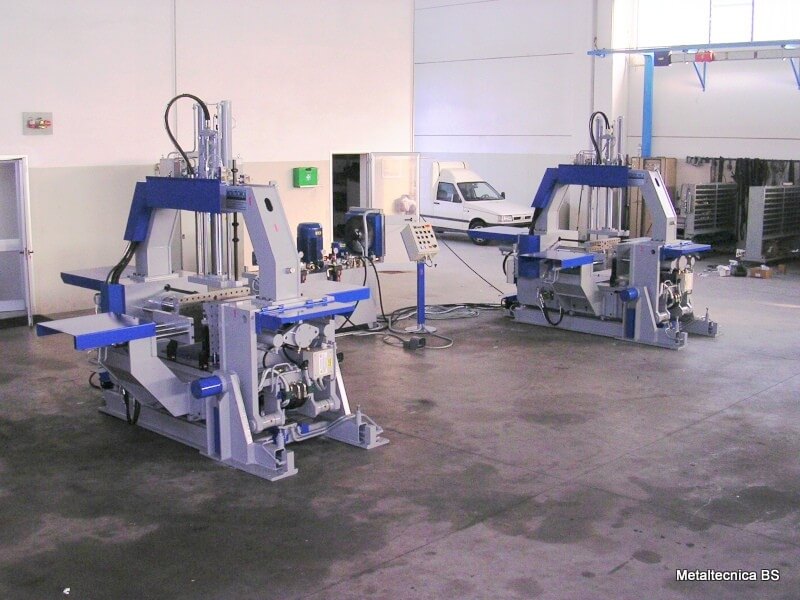

Gravity die casting machine model HV 1200, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically automotive parts.
Composed of: fixed base, mobile cradle with 90 ° inclination with proportional logic, 2 horizontal mobile shelves complete with side extractions, 2 side shelves with mobile top, extraction on mobile surface, lower extraction, electrical management system, hydraulic control unit.
Use in a work cell with interface with casting robots.
Additional information
Tilt | 0-90° |
---|---|
Max opening horiz. | 1200 mm |
Max lateral opening | 1400 mm |
Horizontal upper side tables stroke | 600 mm |
Horizontal lower side tables stroke inf. | 300 mm |
Lower ejection stroke | 150 mm |
Side movable table stroke | 300 mm |
Side extraction stroke | 60 mm |
Tables connections | customizable |
Tables dimensions | customizable |
Tables stroke | customizable |
