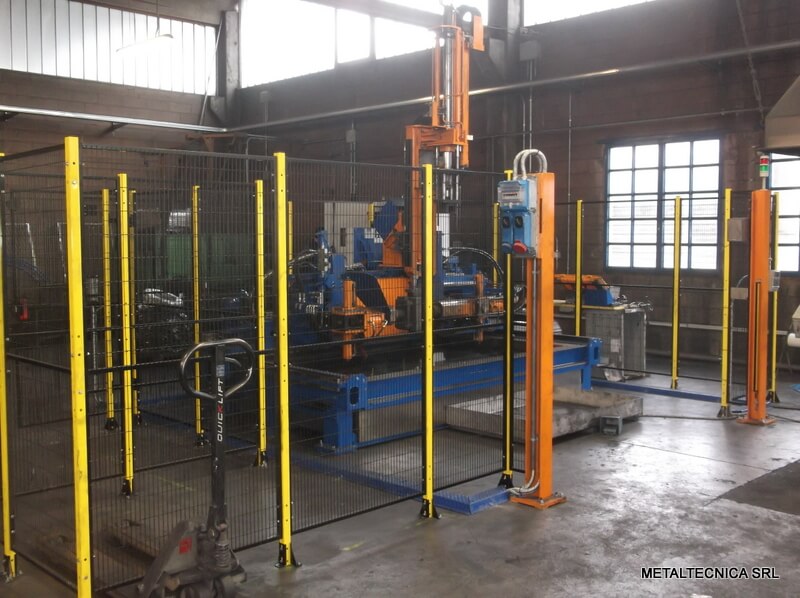

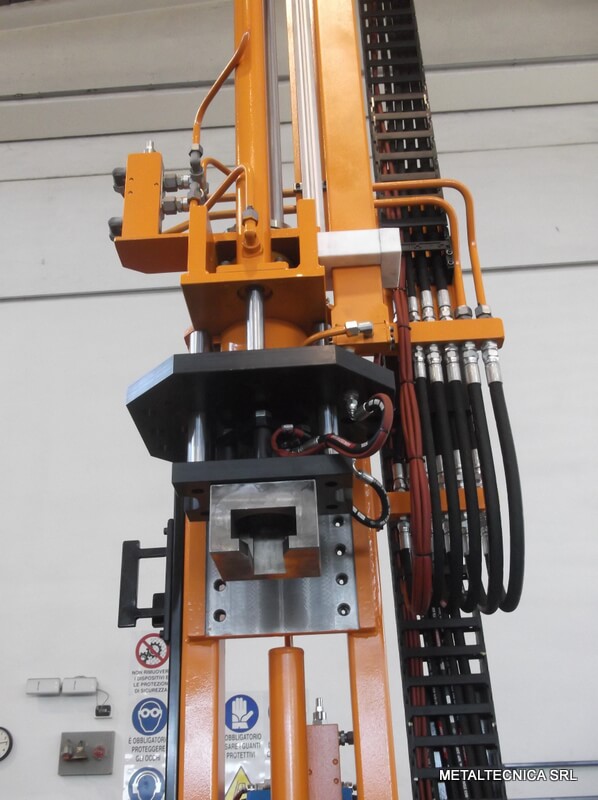

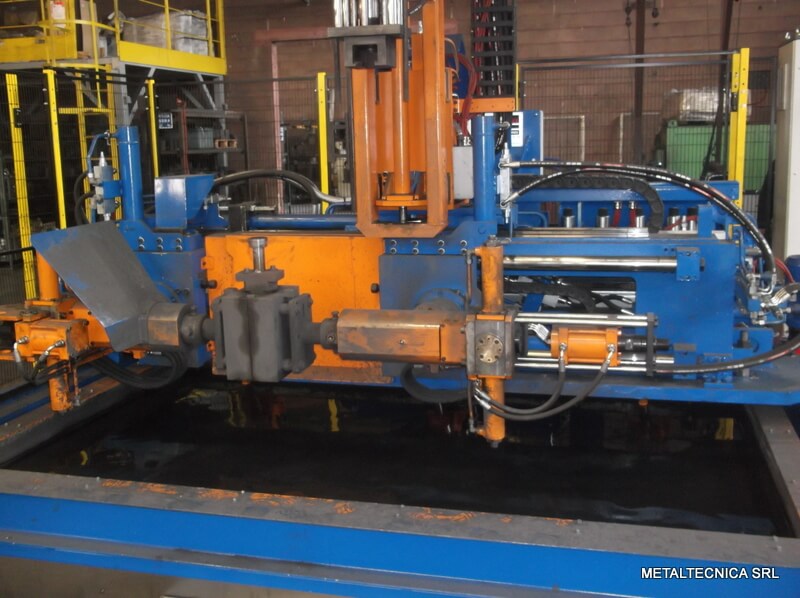

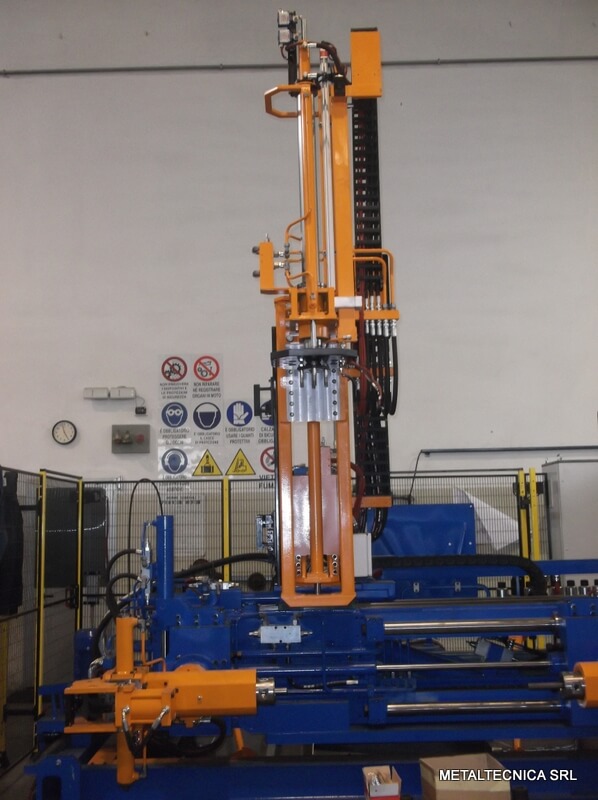

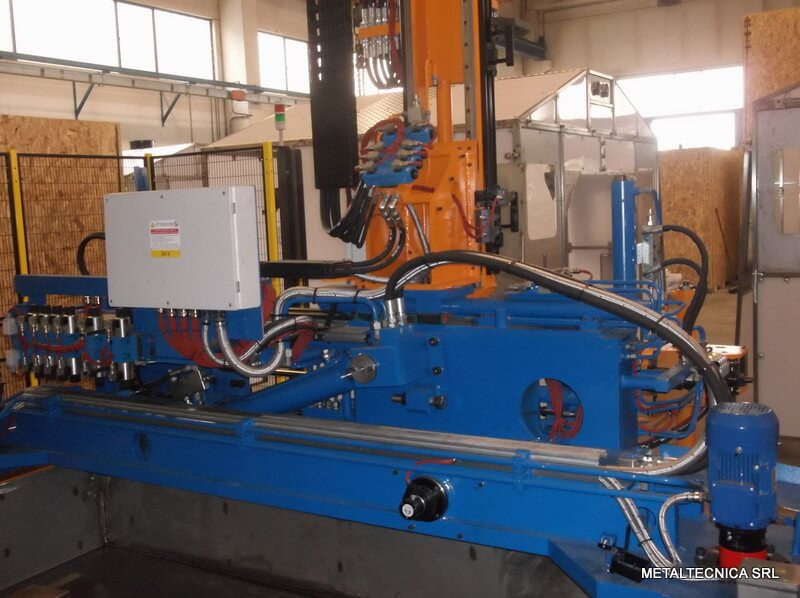

Gravity casting machine model MBO1-special, suitable for the production of parts in gravity casting of non-ferrous alloys, composed of: fixed base, 1 head holder group with adjustable 90 ° inclination, 1 mobile head, 1 fixed head, mold holder tables with rotation 0 -180 ° with proportional logic, extraction on tables, heads with 0-90 rotation for mold cooling / stapling, mold cooling / stapling tank complete with agitators, upper horizontal and vertical movable male insertion carriage, electrical management system and hydraulic control unit.
Like any machine for aluminum gravity foundry produced by Metaltecnica, it provides: possibility of use in manual casting and possibility of use in a robotic work cell, with proportional tilting integration.
Additional information
Head unit inclination | 0-90° |
---|---|
Single head capacity | 75 Kg |
Max opening between heads | 1000 mm |
Rotating | D 600 mm |
Moving head stroke | 800 mm |
Extraction stroke | 20 mm |
Tables connections | customizable |
Tables stroke | customizable |
Tables dimensions | customizable |
