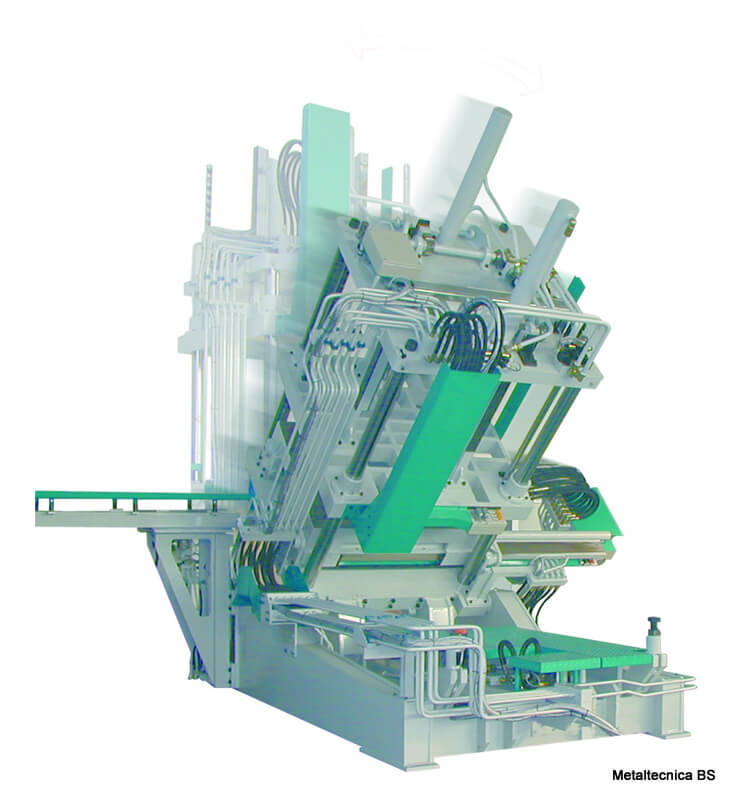

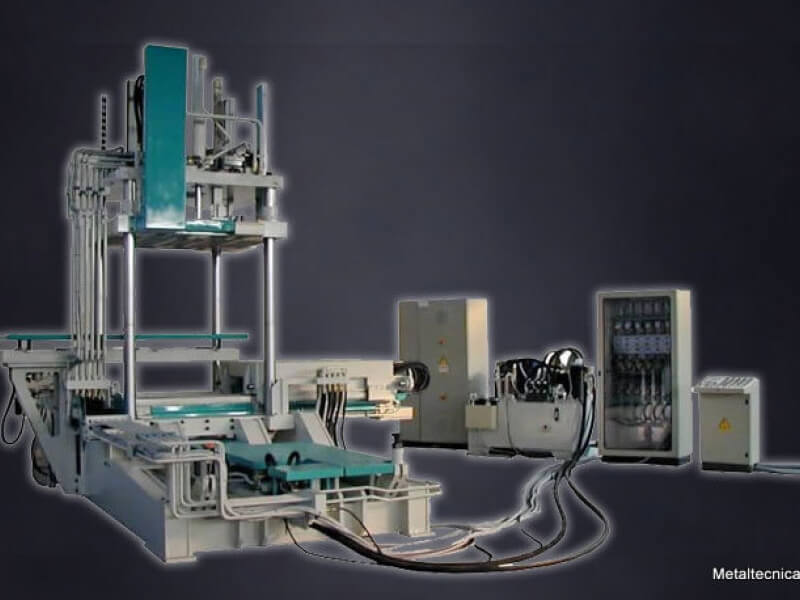

Gravity die casting machine, model HV 1300 special, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically automotive parts.

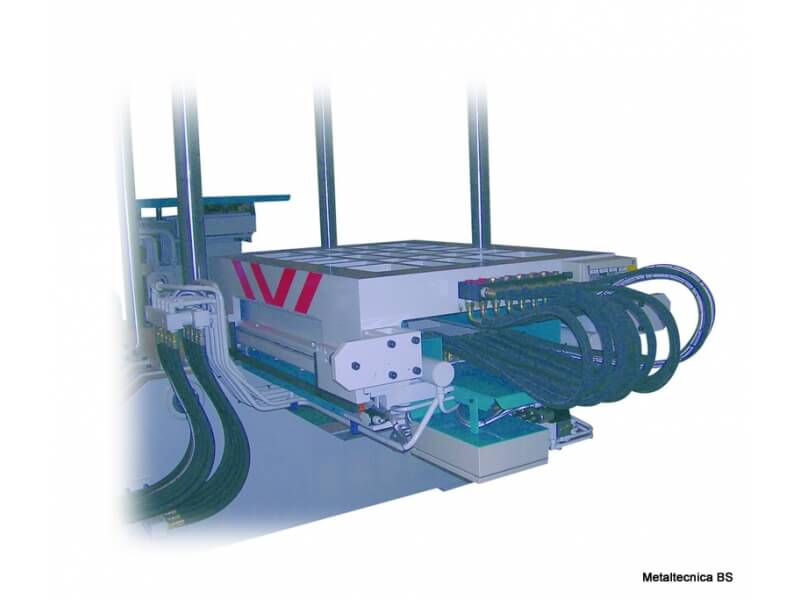

Composed of: fixed base, mobile cradle with 90 ° inclination with proportional logic, 1 mobile shelves, upper extraction, piping on board for managing 10 mould cooling, side evacuator, electrical management system, hydraulic control unit.
Use in a work cell with interface with casting robots.
Additional information
| Tilt | 0-90° |
|---|---|
| Max opening horiz. | 1400 mm |
| Mobile plate stroke | 1000 mm |
| Upper ejection stroke | 150 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
