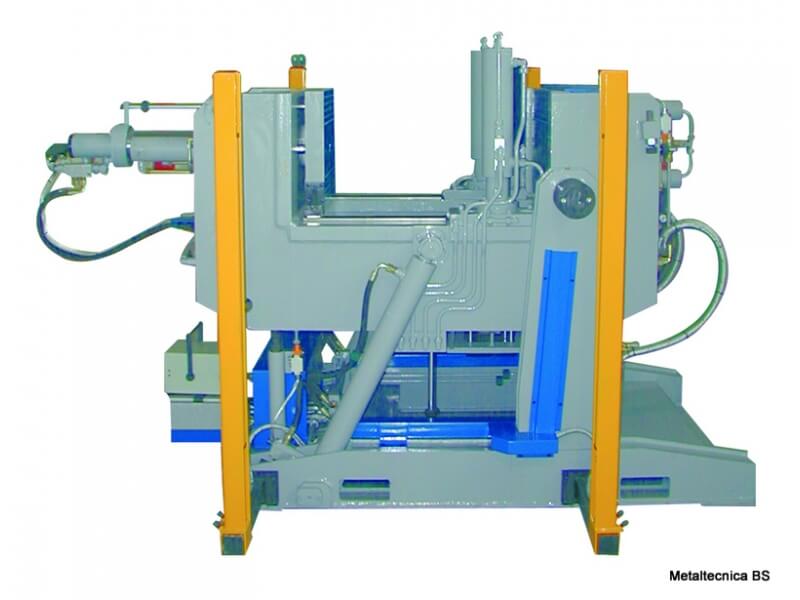

Gravity die casting machine, model HV 700, suitable for the production of parts in gravity casting of non-ferrous alloys, specifically aluminium automotive parts.
Composed of: fixed base, mobile cradle with proportional logic 90 ° tilting, 1 mobile shelf with side extraction, lower extraction, electrical management system, hydraulic control unit.
Use in a work cell housed on a rotating table, interfaced with casting robots.
Additional information
| Tilt | 0-90° |
|---|---|
| Max opening horiz. | 700 mm |
| Mobile plate stroke | 400 mm |
| Lower ejection stroke | 50 mm |
| Side extraction stroke | 50 mm |
| Tables connections | customizable |
| Tables dimensions | customizable |
| Tables stroke | customizable |
